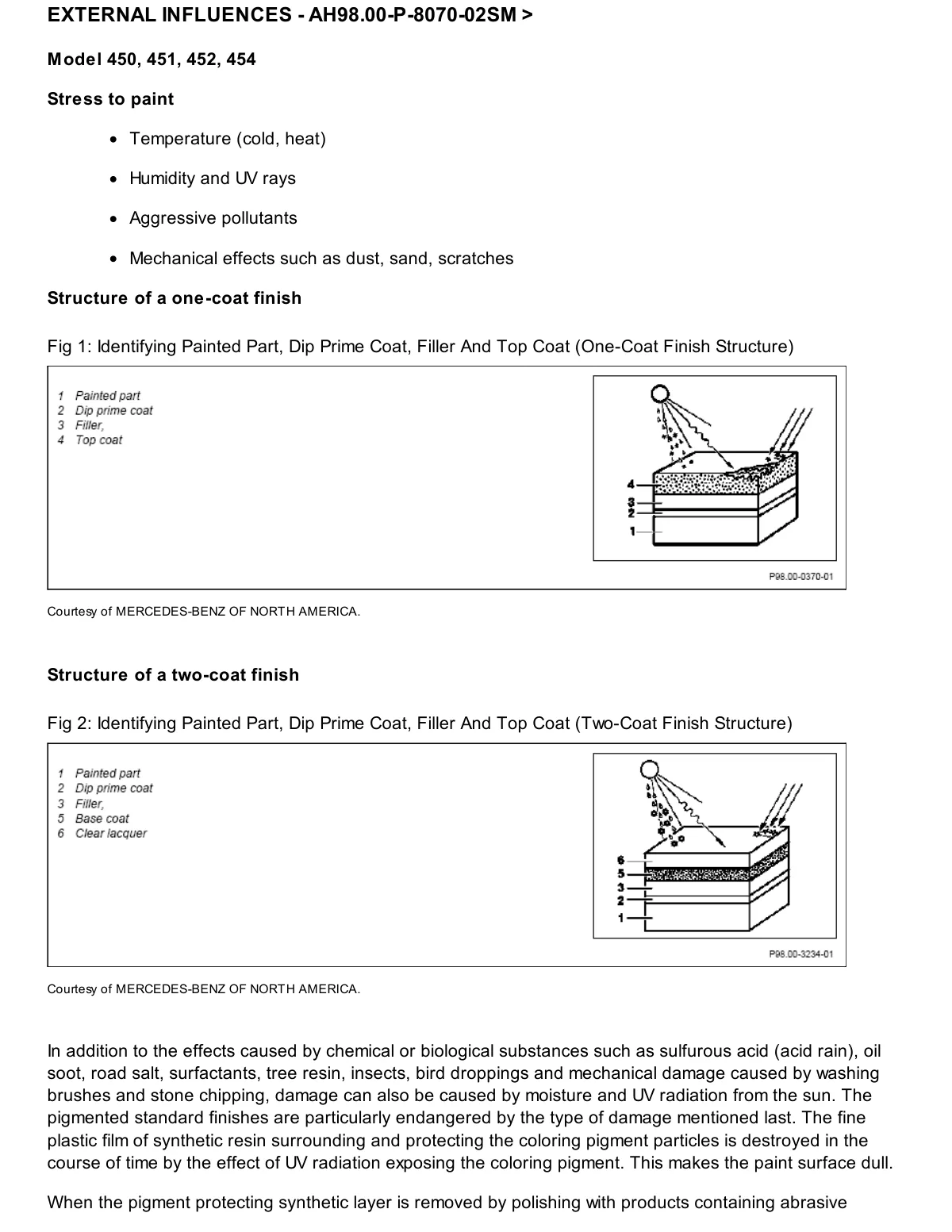

Paint finish structures for smart models 450, 451, 452, 454 showing one-coat and two-coat finishes with external stress factors.

Technical diagrams of one-coat and two-coat paint layer structures with numbered callouts and stress factors.

View full-size image ↗

See all Body & Interior figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
