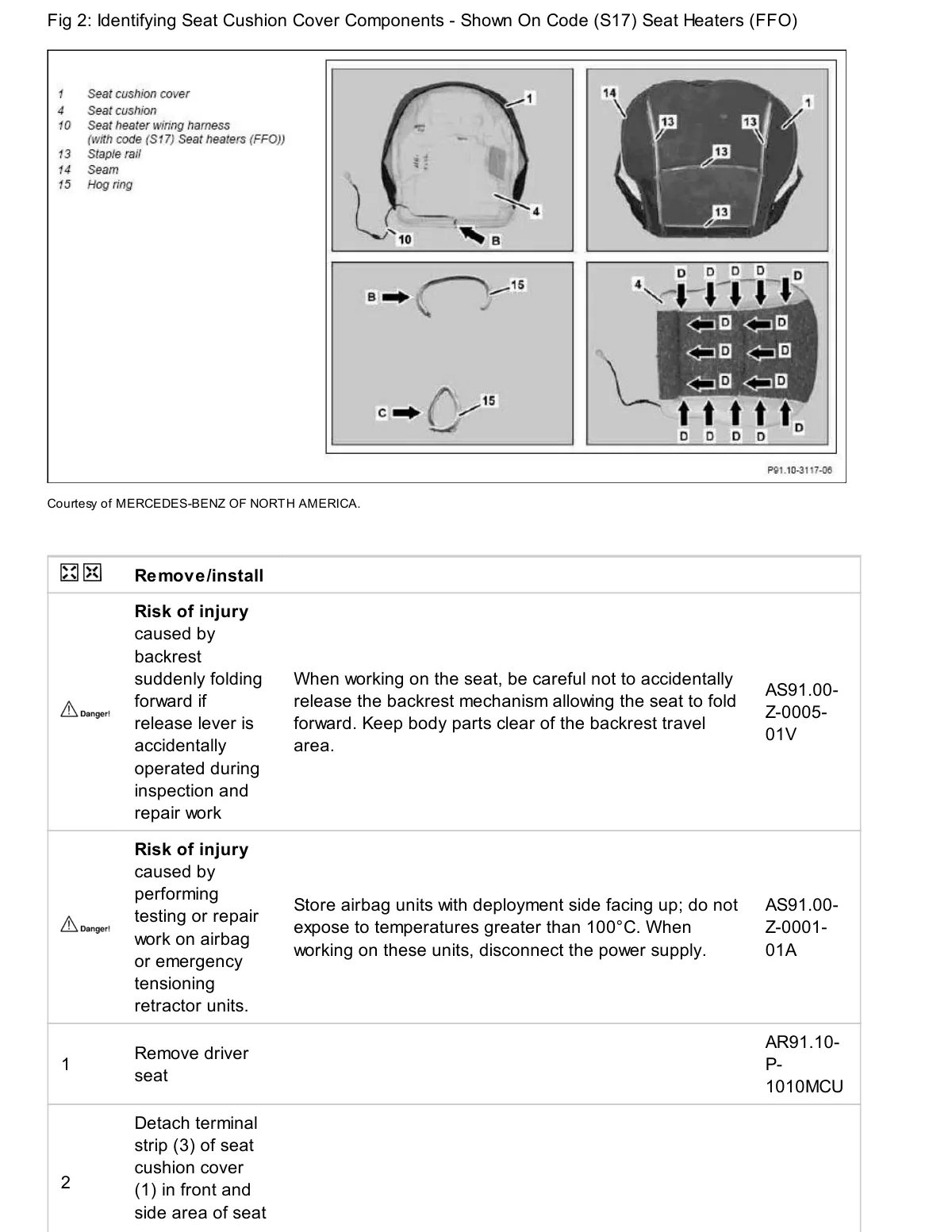

Seat cushion cover components and heater wiring harness (S17) identification diagram for Smart vehicles.

Exploded view diagram showing seat cushion cover parts, heater elements, staple rail, seam, hog ring, and wiring harness layout with numbered callouts.

View full-size image ↗

See all Body & Interior figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
