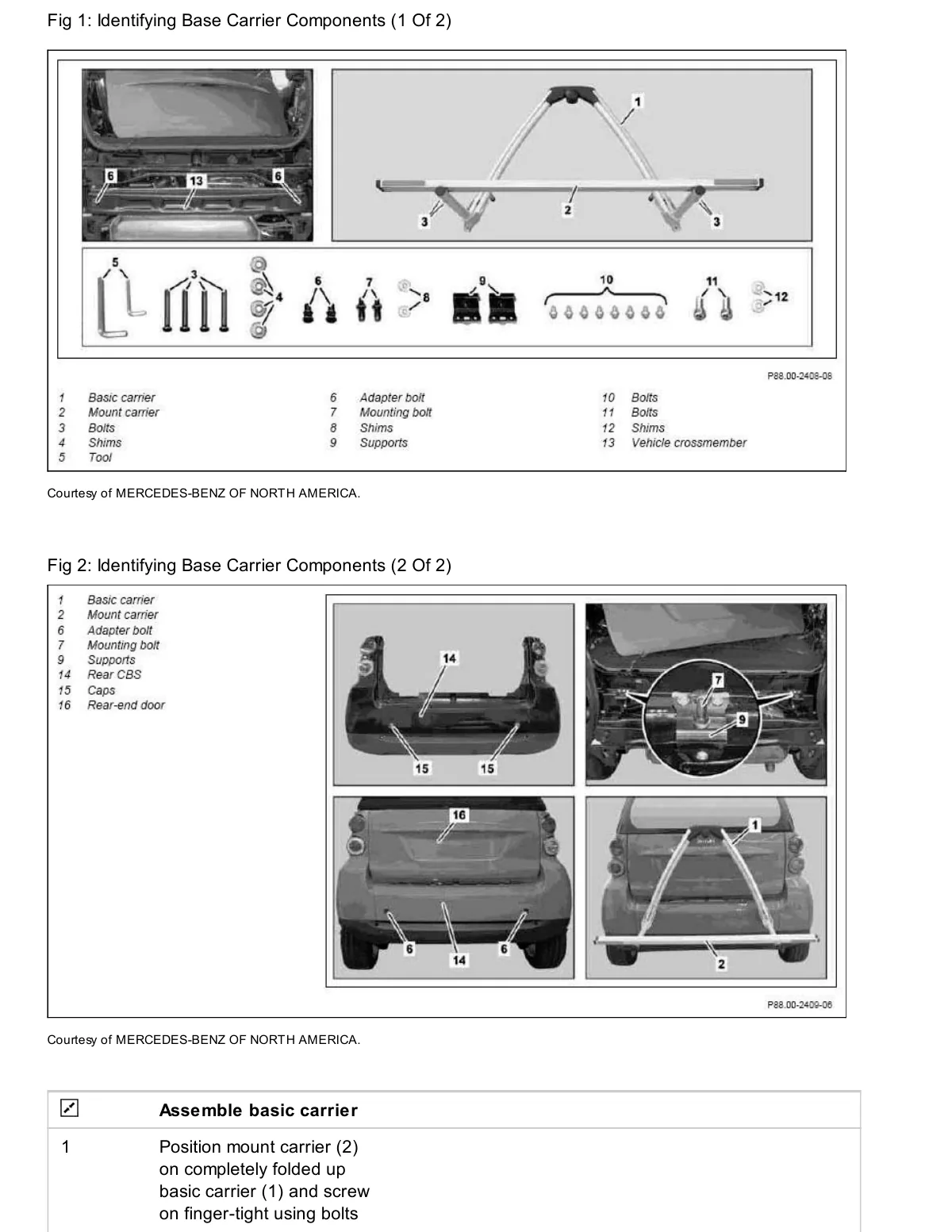

Base carrier assembly components and installation views for Smart 450/451/452/454 roof rack system.

Exploded diagram and four installation photos of roof carrier parts and mounting locations.

View full-size image ↗

See all Body & Interior figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
