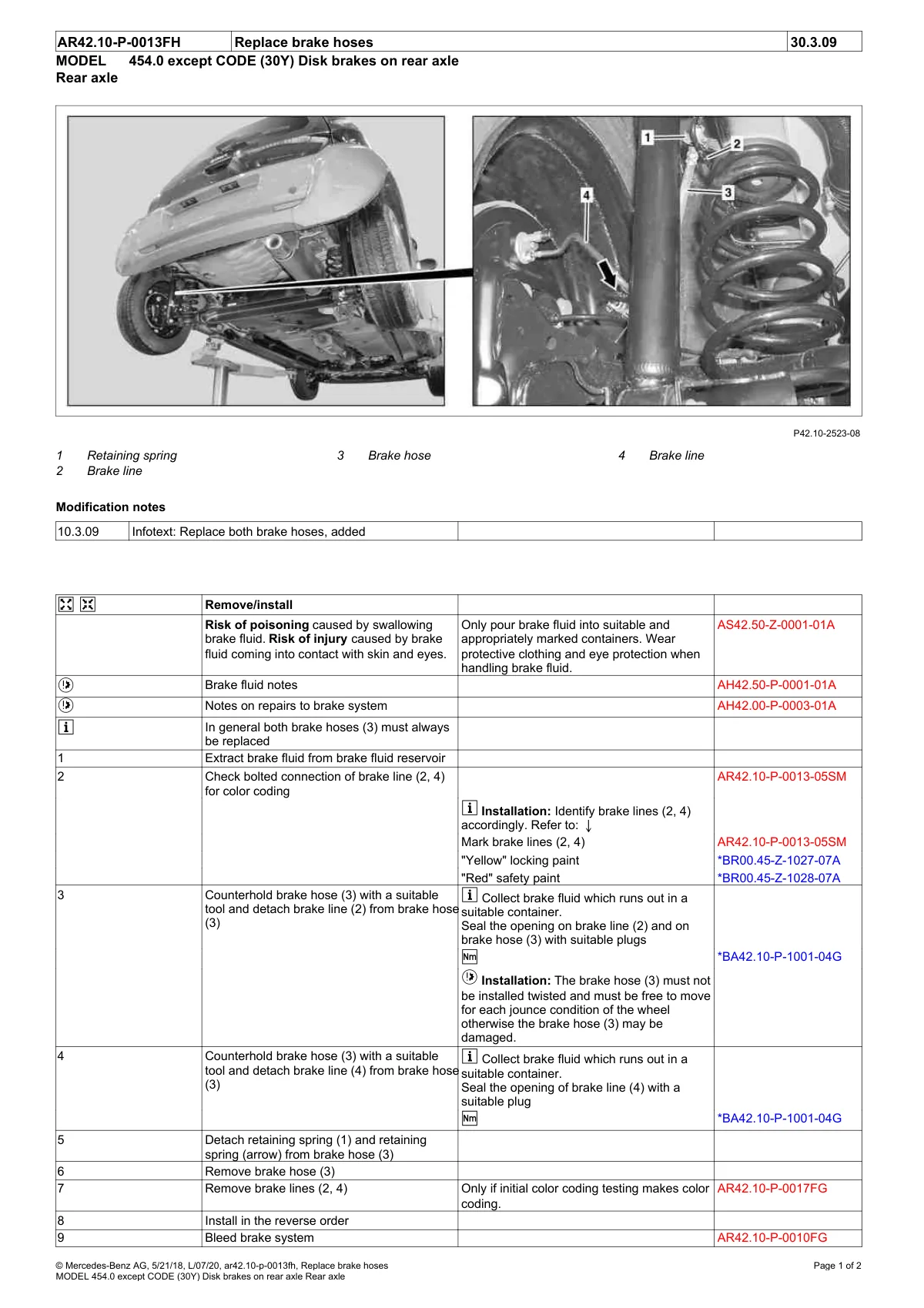

Brake hose replacement procedure for Smart Fortwo 454 rear axle, showing retaining spring and brake line locations with numbered callouts.

Undercar view of rear brake assembly with four numbered callout points indicating brake hoses and retaining spring.
