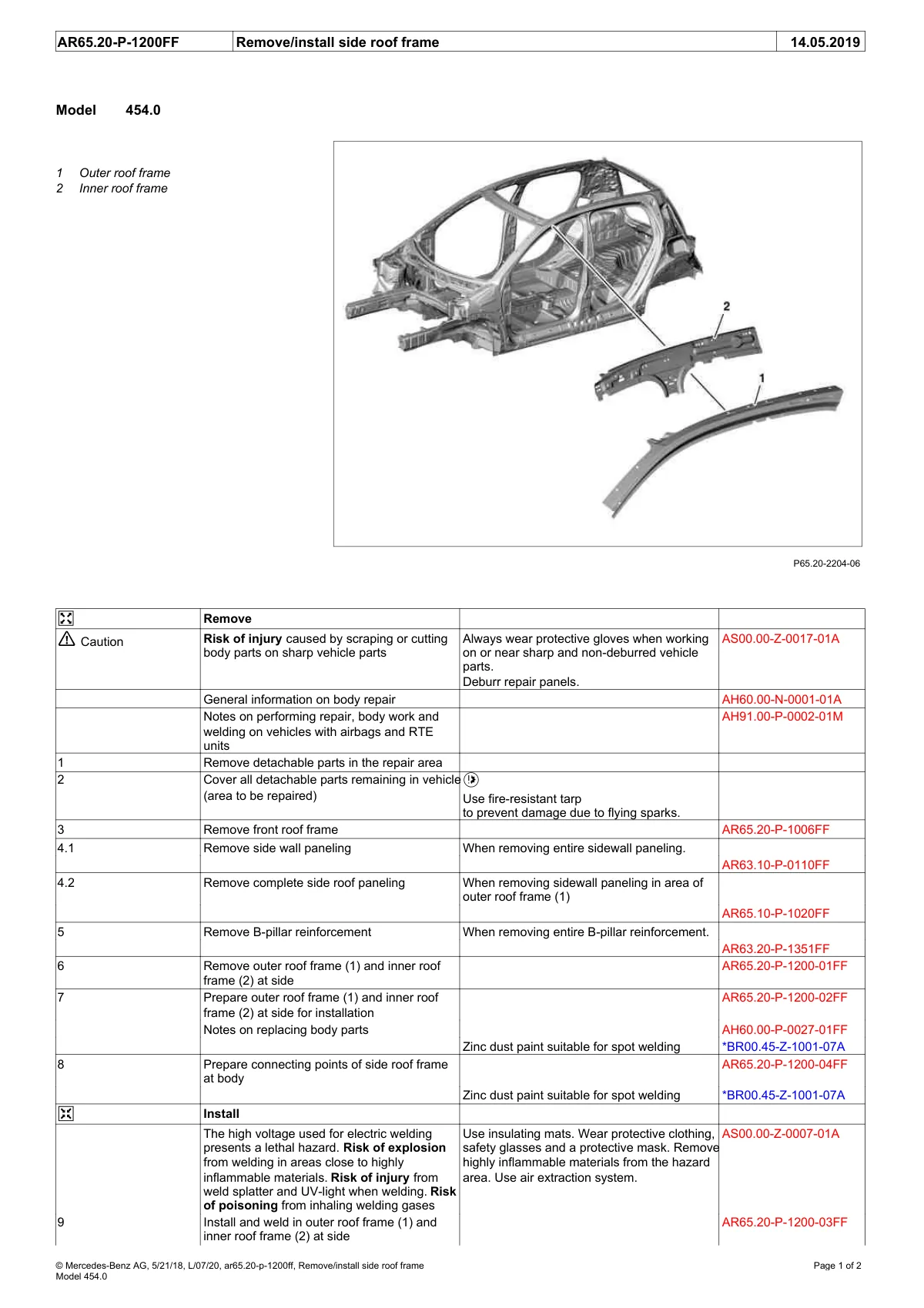

Exploded view of outer and inner roof frame components for smart fortwo 454 cabrio roof removal and installation procedure.

Exploded diagram showing separated roof frame parts labeled 1 and 2 with assembly breakdown view.
