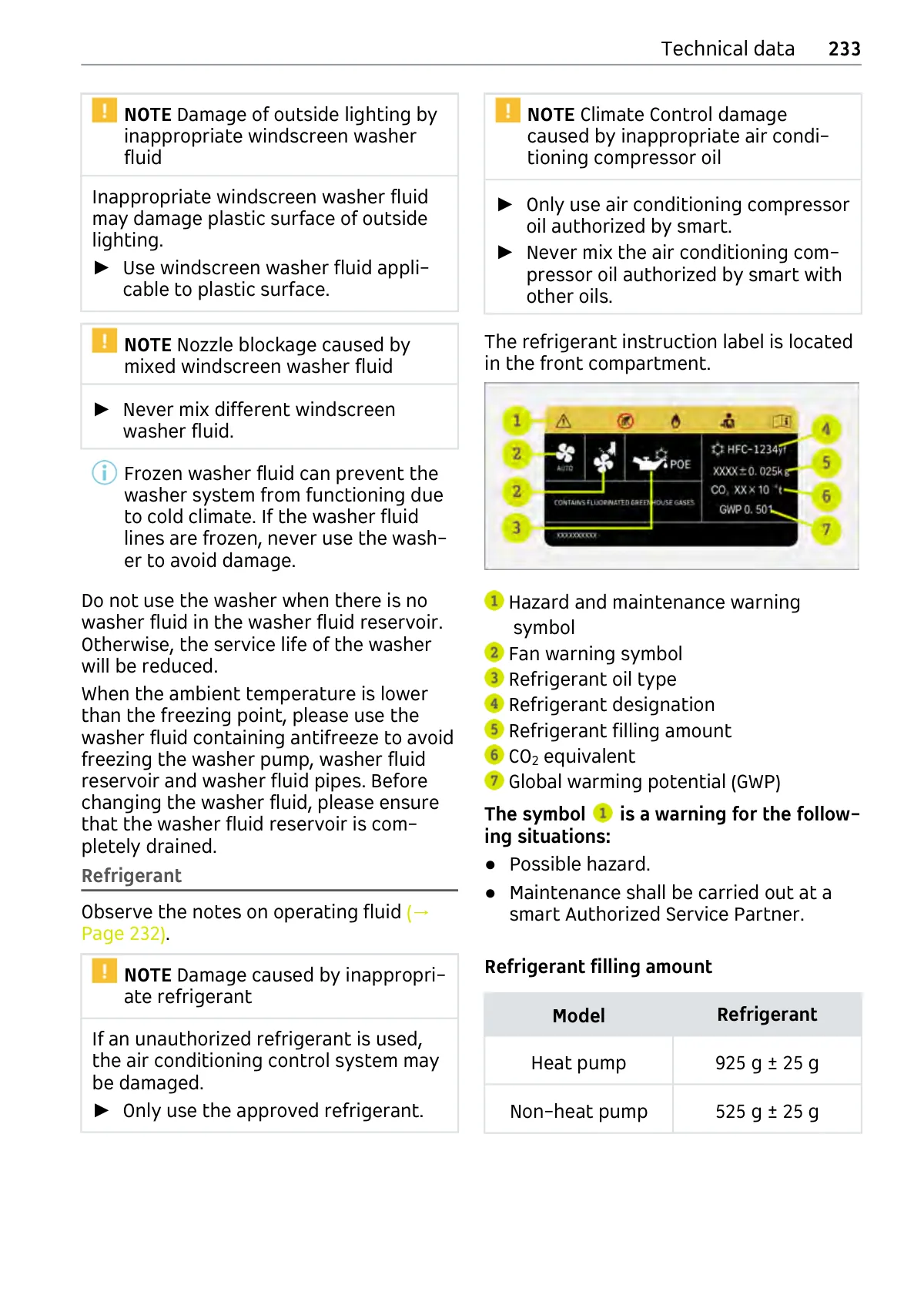

Technical data page 233 covering windscreen washer fluid, refrigerant specifications, and AC compressor oil requirements with labeled warning label diagram.

Technical specifications for windscreen washer, refrigerant filling amounts by model, and AC system maintenance warnings.
