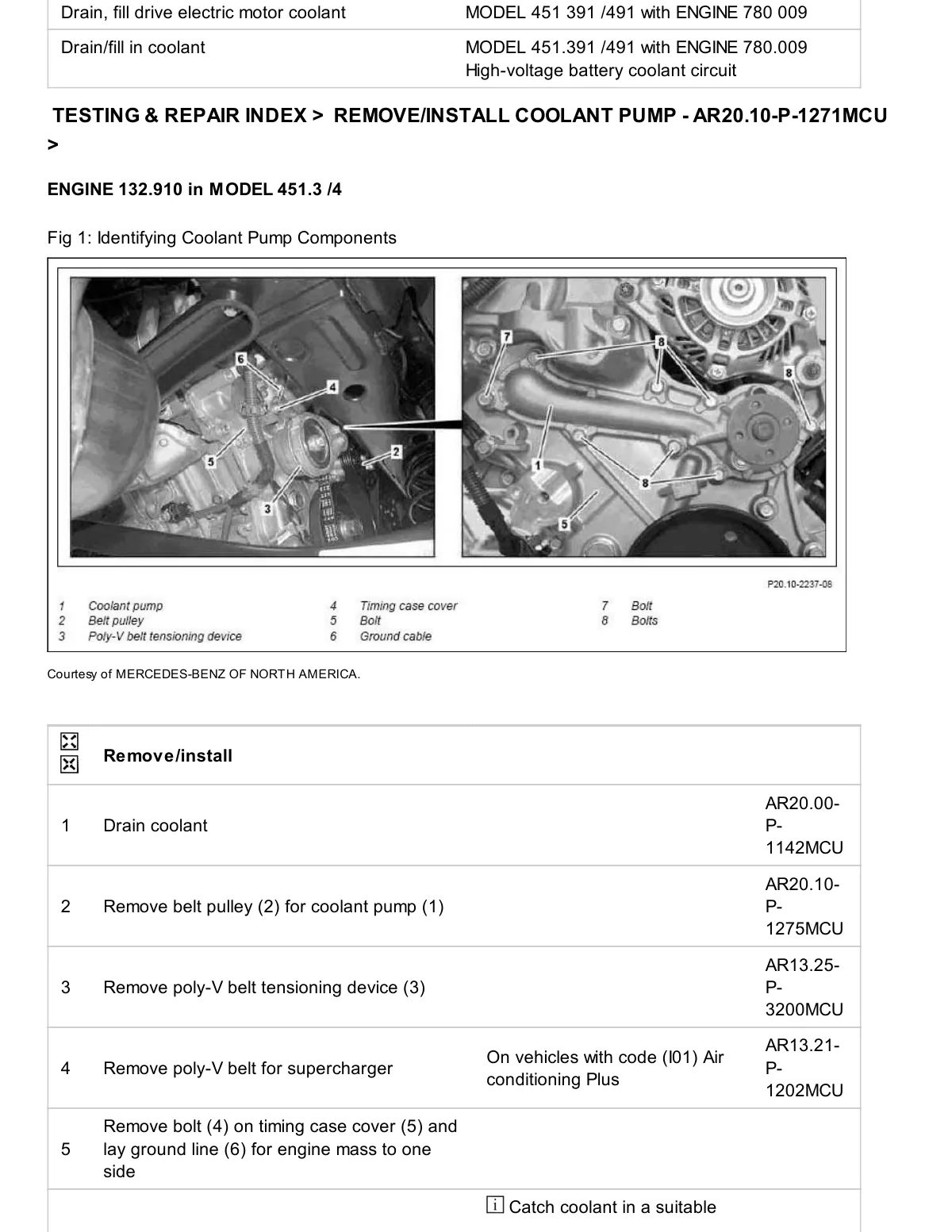

Coolant pump removal and installation procedure for smart 451 with engine 132.910, identifying pump components and disconnect steps.

Annotated engine photos showing coolant pump location and numbered removal sequence for smart fortwo 451.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
