Timing case cover bolts identification and retaining plates for 451/452 engine, with bolt specifications M6 and M8 sizes.

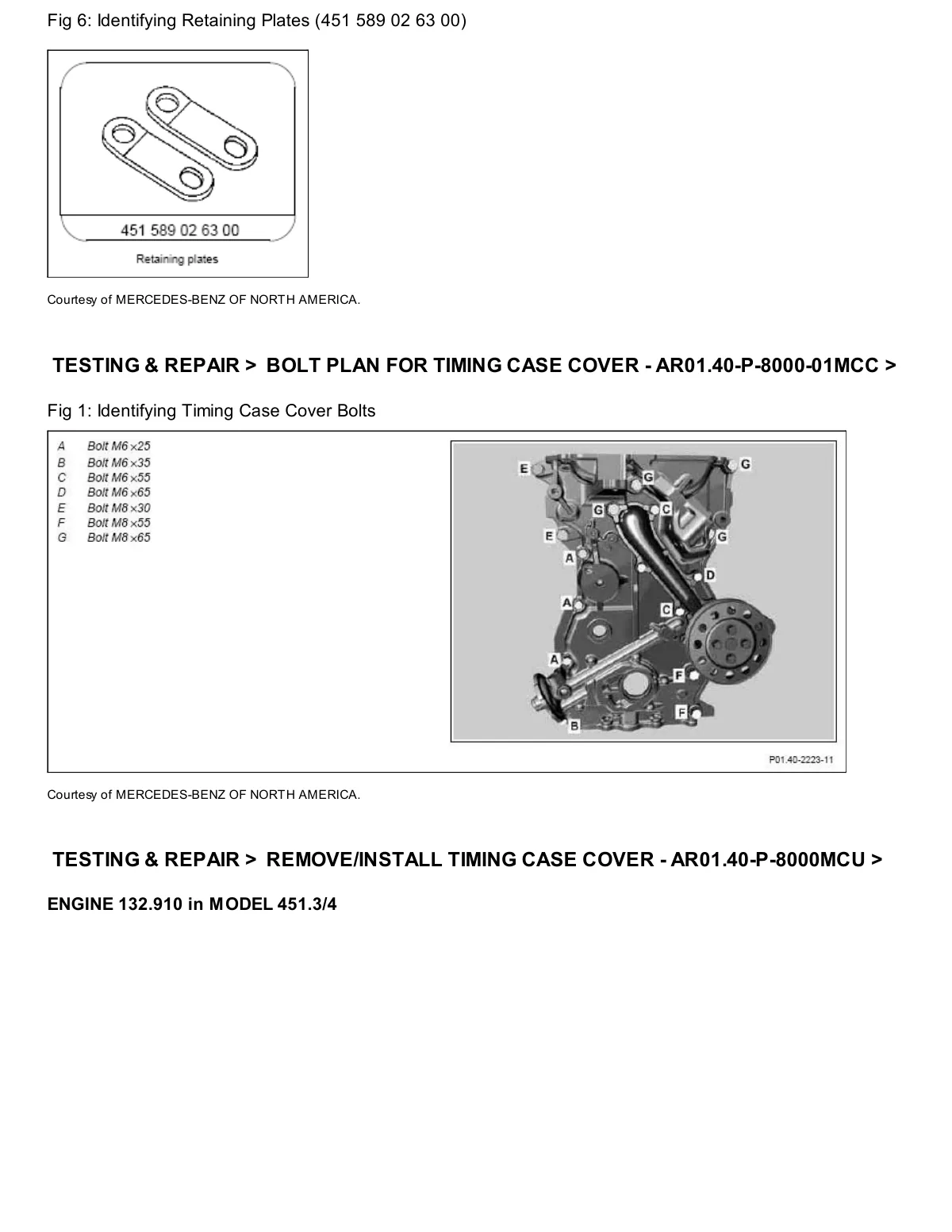

Engine timing case cover bolt diagram with labeled callouts A through G showing bolt sizes and locations on 451/452 model.
