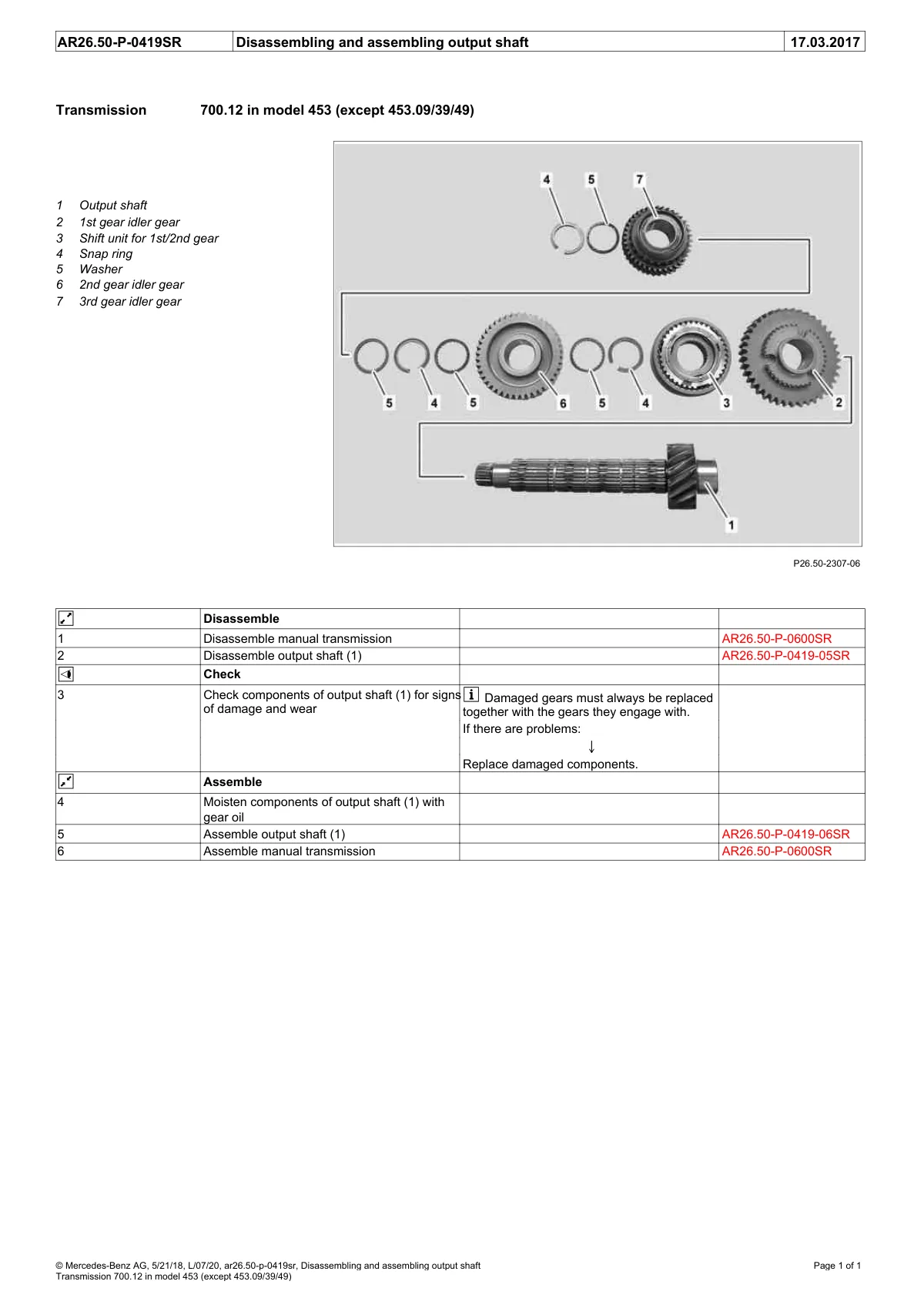

Output shaft disassembly and assembly components for 700.12 manual transmission chassis 453, showing gears, snap ring, and washer.

Exploded diagram of transmission output shaft components with numbered callouts and assembly/disassembly procedure table.

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
