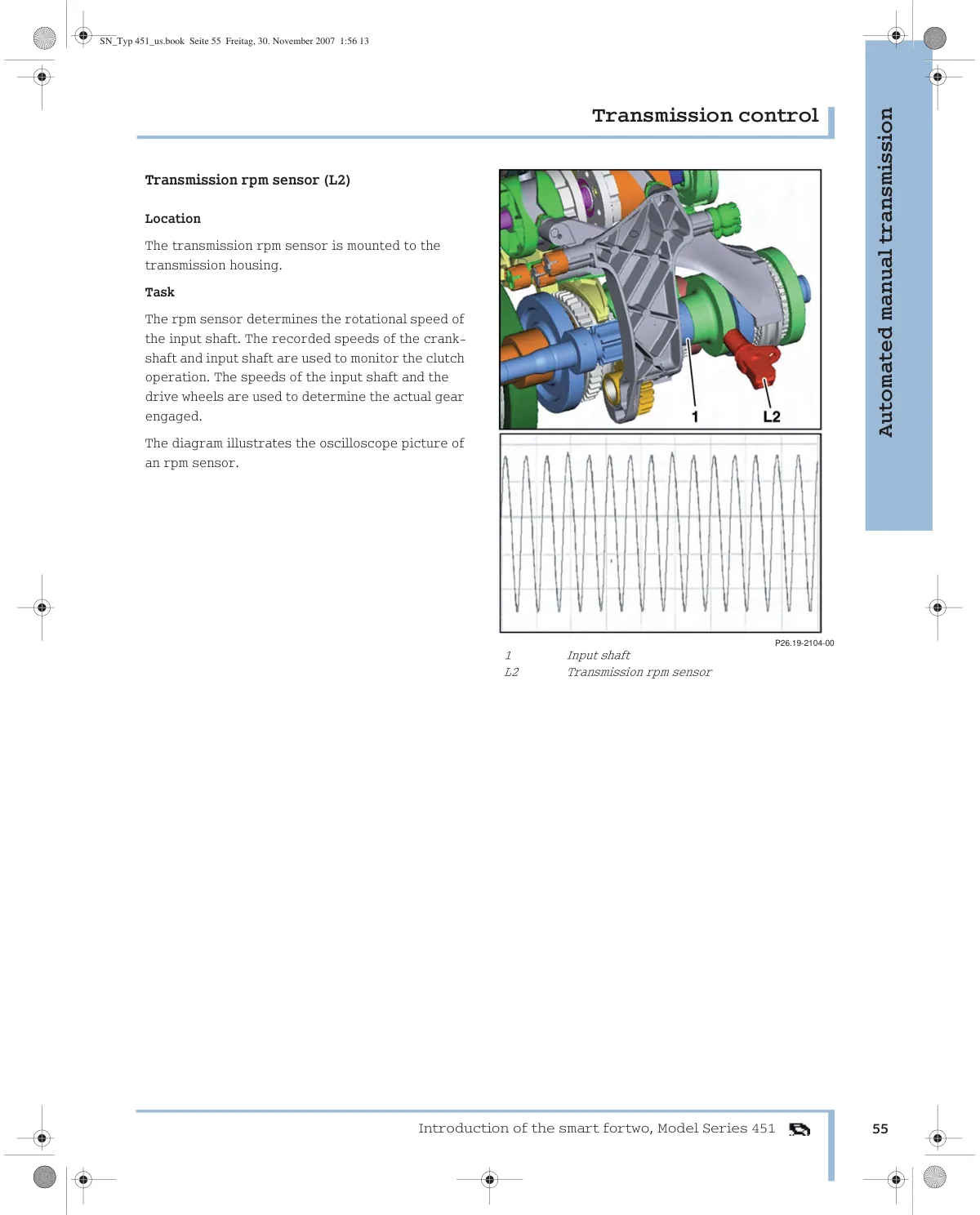

Transmission rpm sensor L2 location on transmission housing with oscilloscope waveform output displayed.

Transmission RPM sensor mounted on transmission housing; oscilloscope waveform shows sensor signal pattern.
