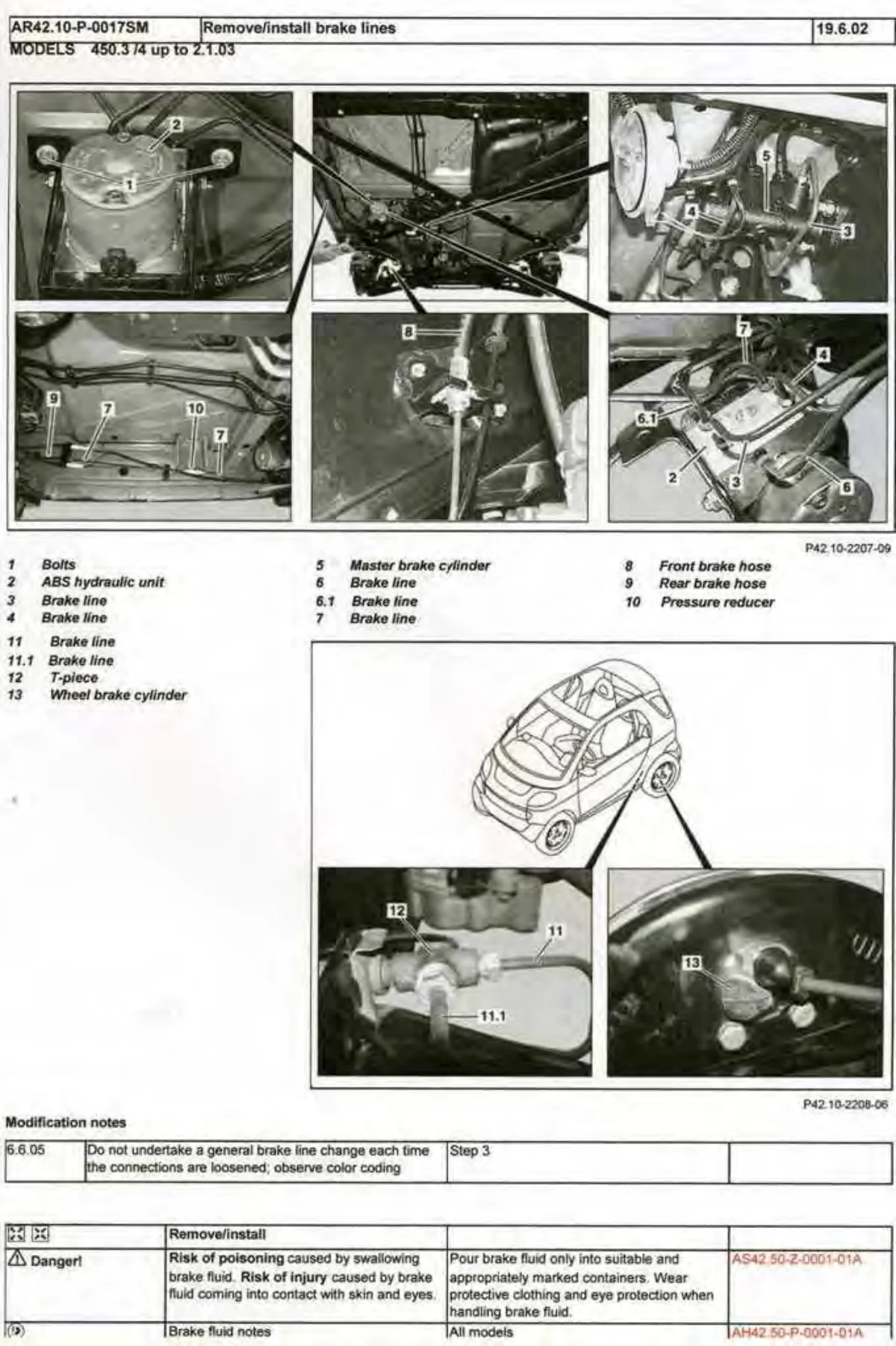

Brake line removal and installation procedure for Smart fortwo 450/451, showing ABS unit, master cylinder, and wheel brake cylinders with numbered callouts.

Six photographs and diagram showing brake system components and routing with numbered callouts 1-13 on Smart fortwo chassis 450/451.

View full-size image ↗

See all Chassis figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
