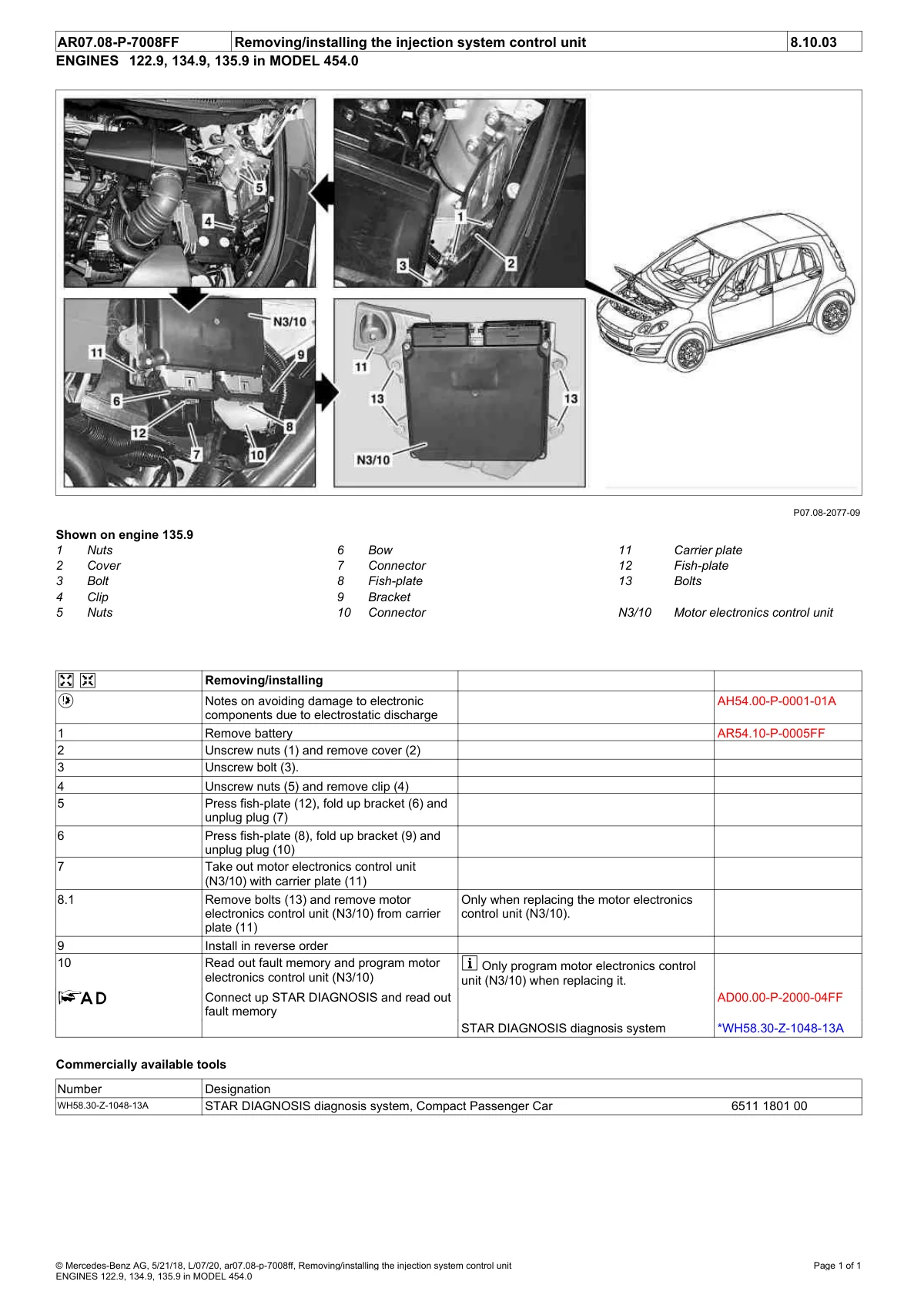

Removing and installing injection system control unit on 454.0 with engines 122.9, 134.9, 135.9 – four engine bay views, component callouts, and control unit location.

Service procedure with numbered callouts showing engine bay components and motor electronics control unit removal steps
