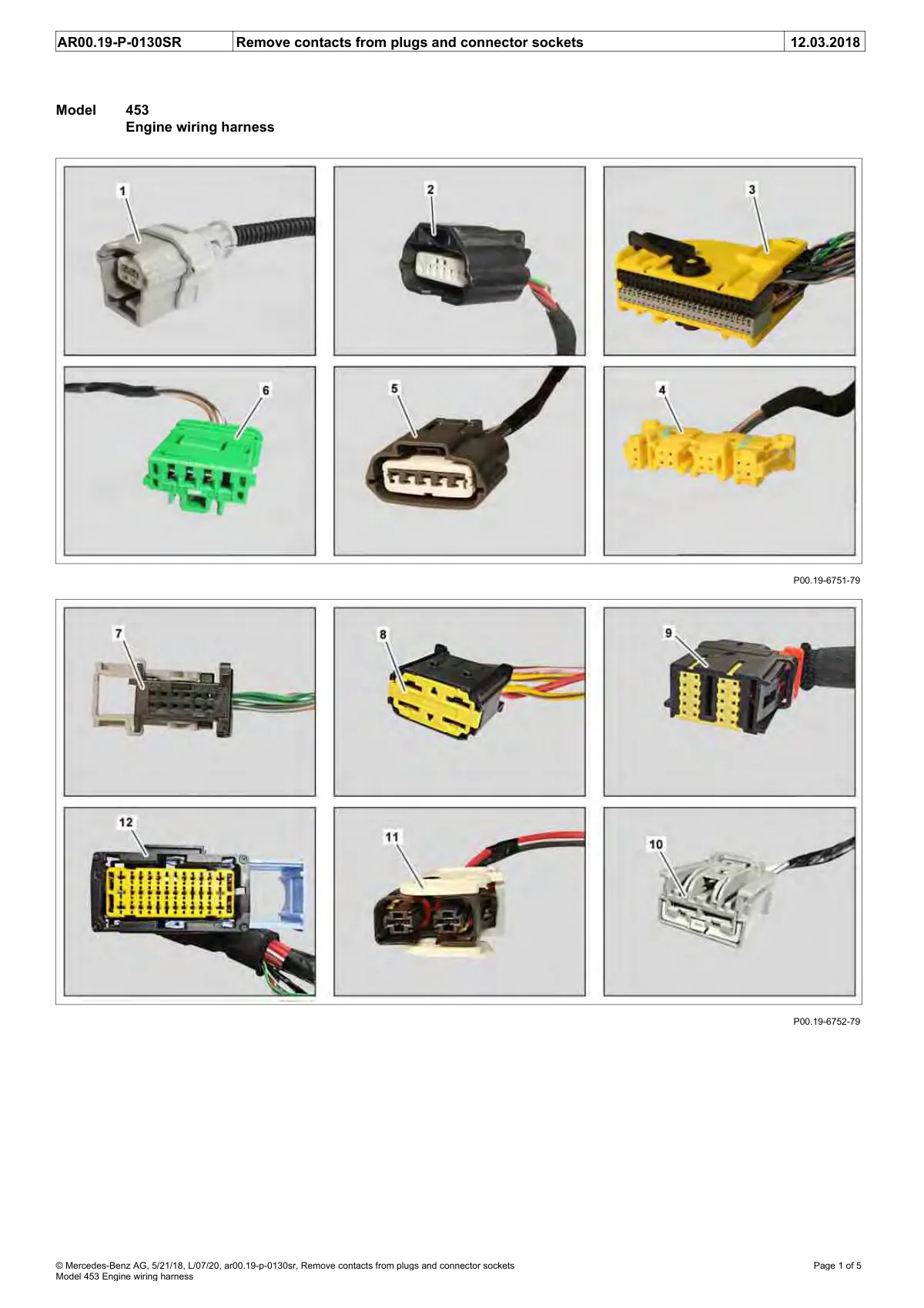

Model 453 engine wiring harness connector and plug contact removal procedure with 12 numbered callout examples.

12 labeled photographs showing different electrical connectors and plugs for Smart 453 engine wiring harness

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
