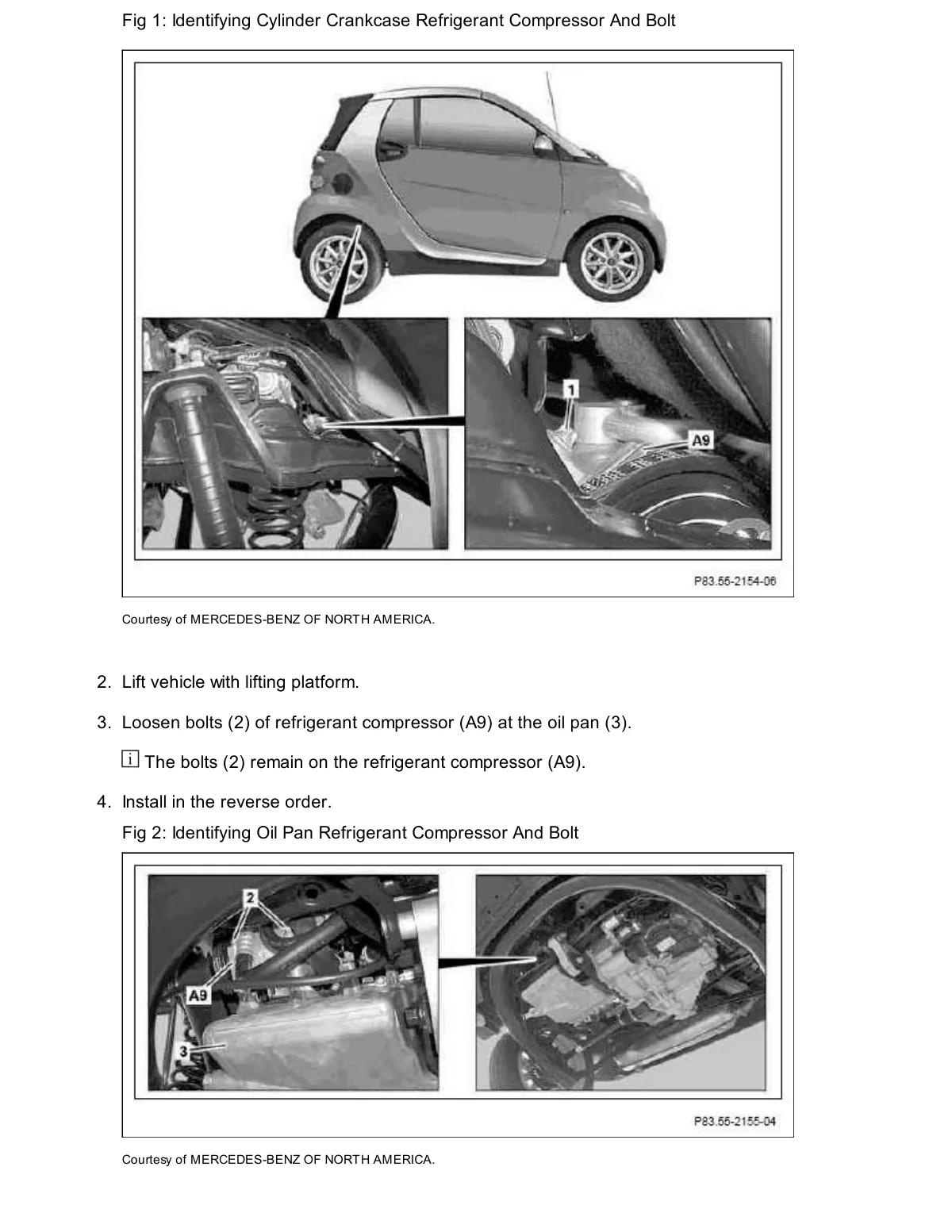

Cylinder crankcase refrigerant compressor and oil pan bolt location on Smart fortwo 450/451/452/454 chassis.

Smart car with close-up photos of refrigerant compressor A9 and oil pan bolt locations underneath vehicle.
