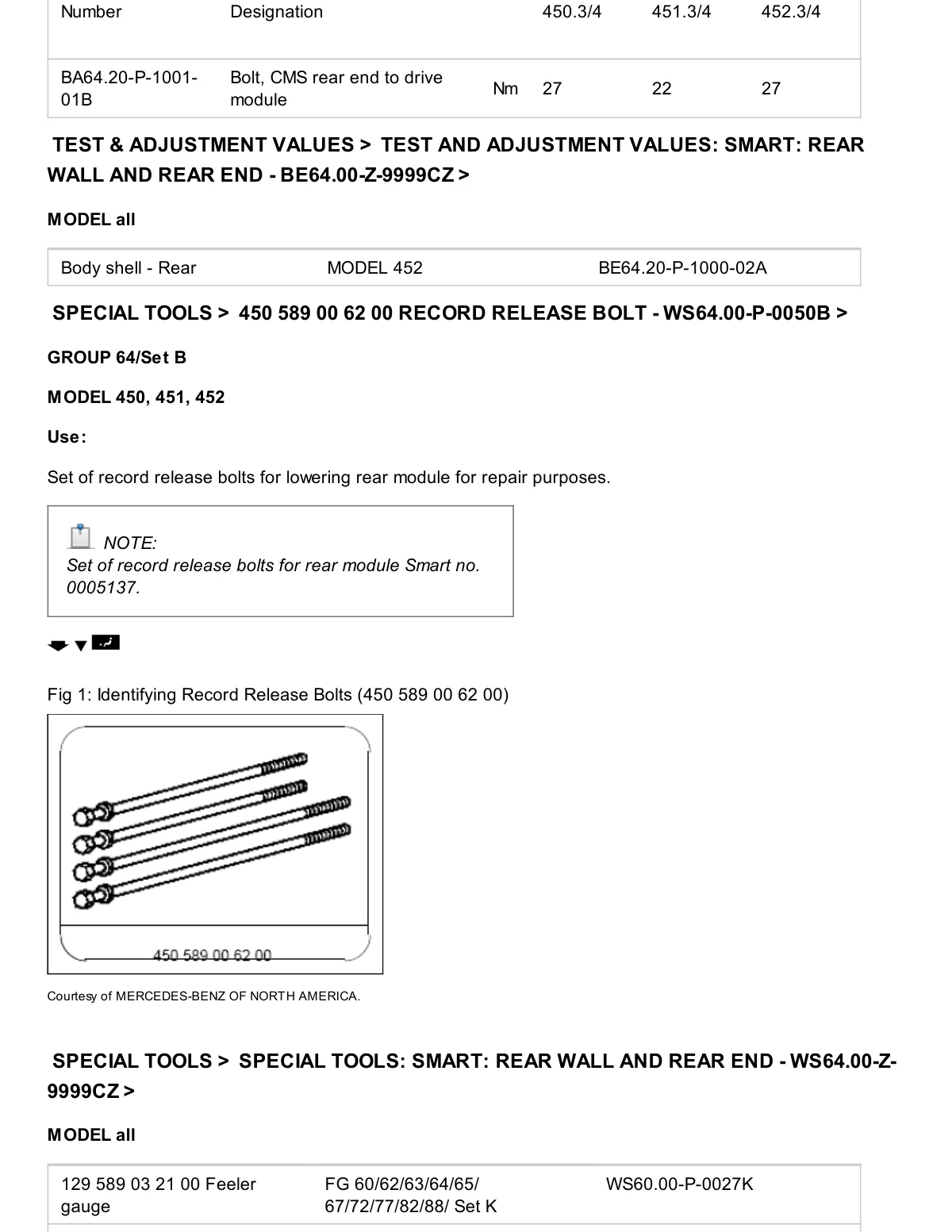

Torque specifications for CMS rear end to drive module bolt and record release bolt tool for Smart 450, 451, 452 chassis.

Torque specs table and record release bolt tool diagram for Smart rear end service.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
