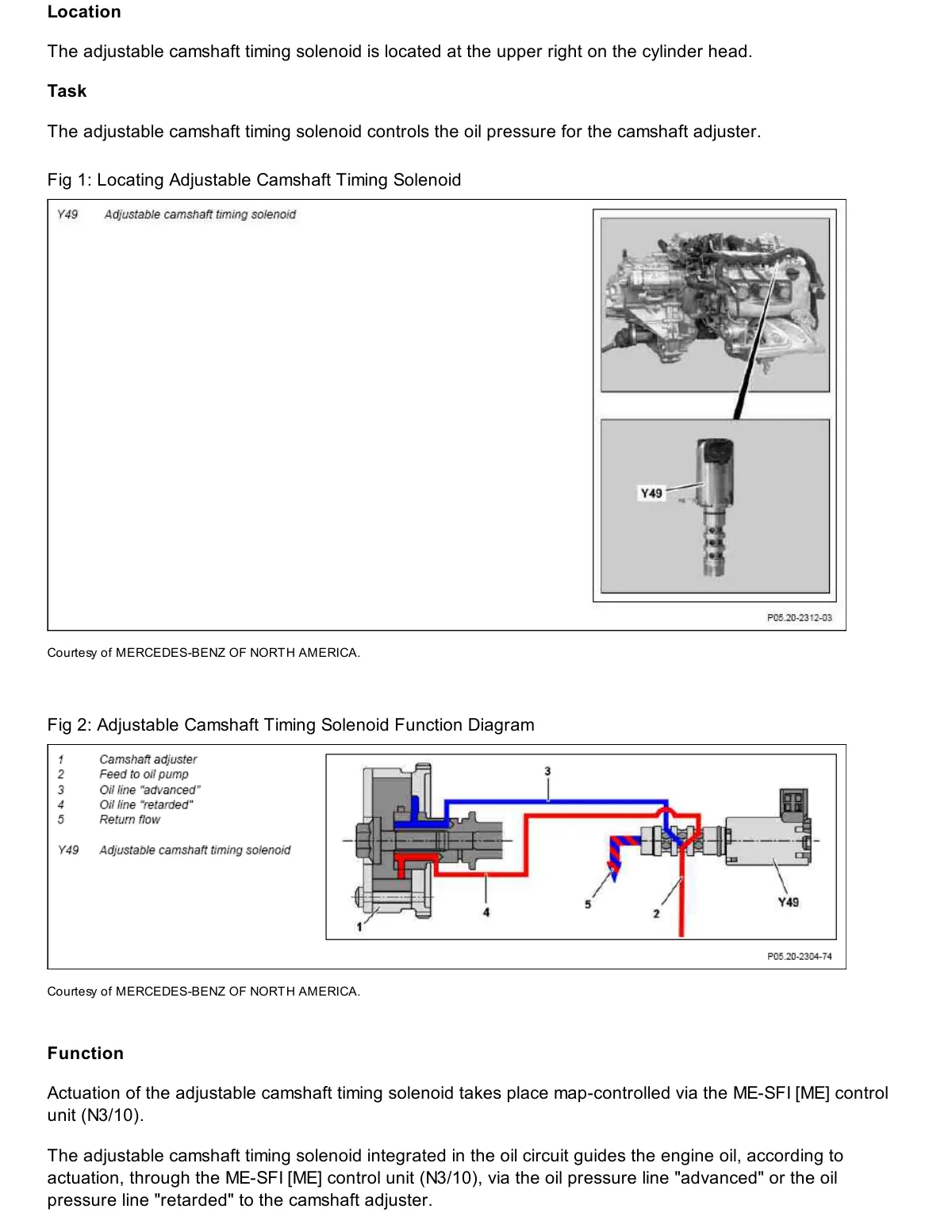

Adjustable camshaft timing solenoid Y49 location on cylinder head and function diagram with oil pressure lines.

Engine solenoid location diagram and schematic showing oil flow paths to camshaft adjuster.
