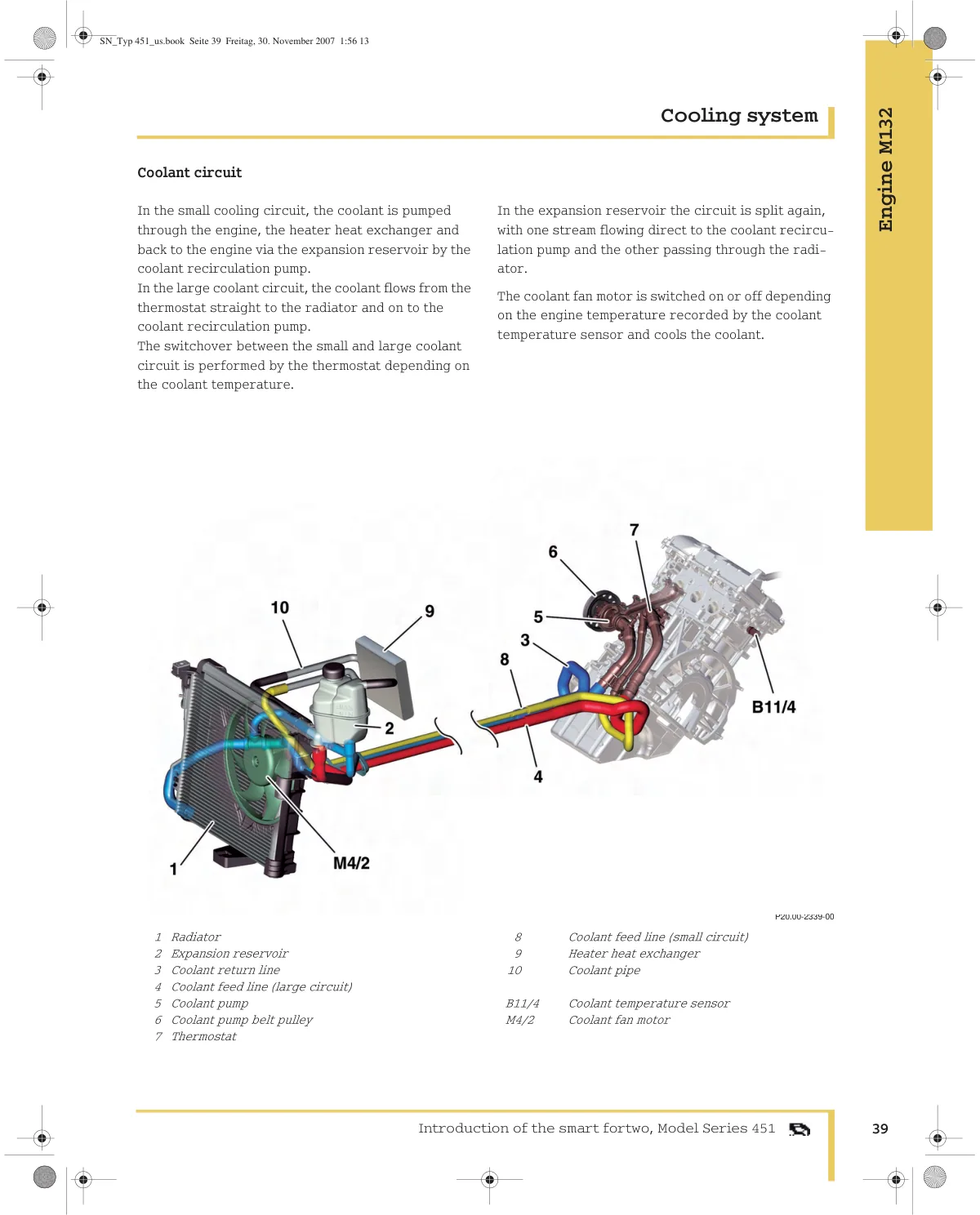

Cooling system circuit diagram with labeled components including radiator, expansion reservoir, coolant pump, thermostat, and fan motor on 451 chassis.

Exploded view diagram of engine cooling system components with ten numbered callouts and technical descriptions.
