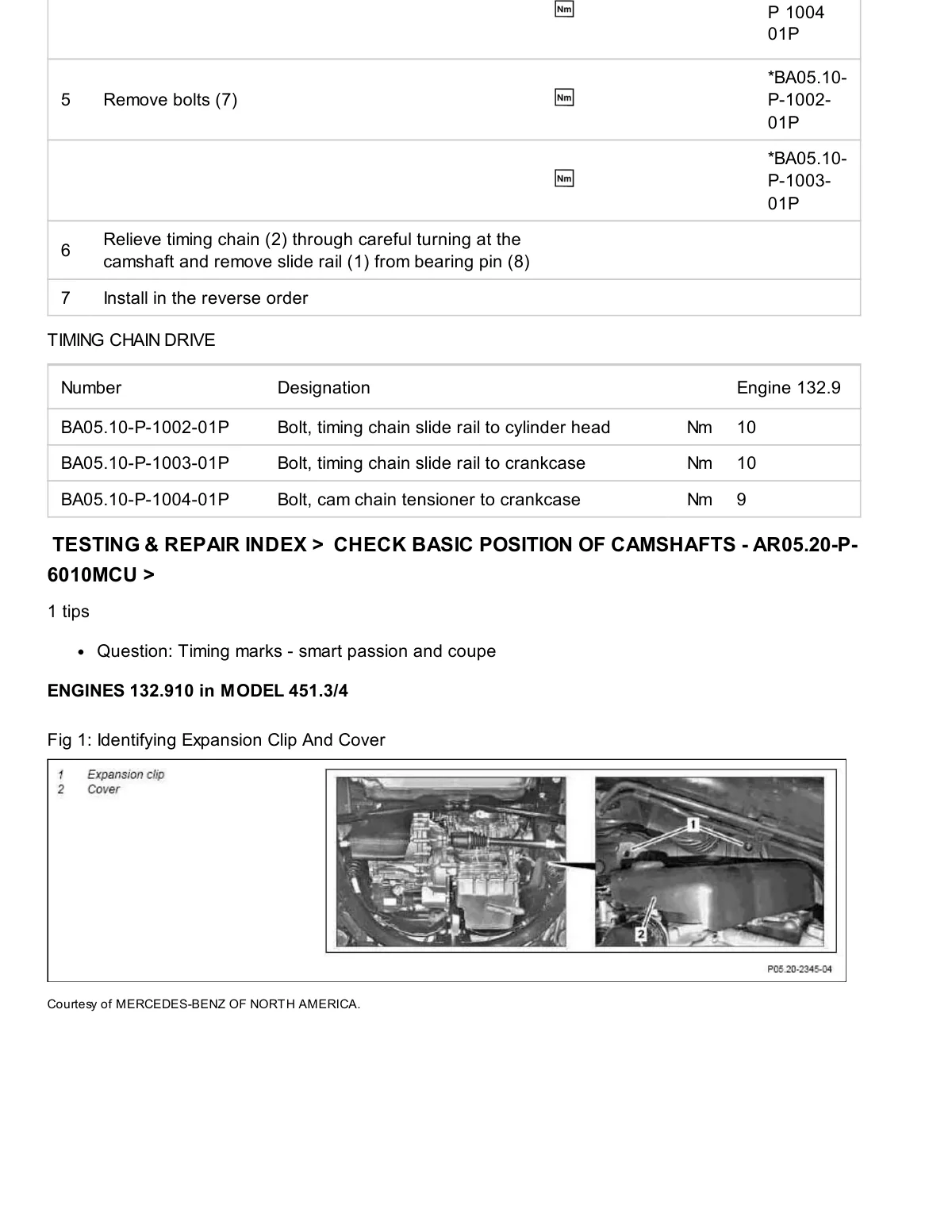

Timing chain drive bolts and procedures for smart 451/454 engine 132.9 removal and installation.

Service procedure steps 5-7 with timing chain bolt specifications and torque values in Nm.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
