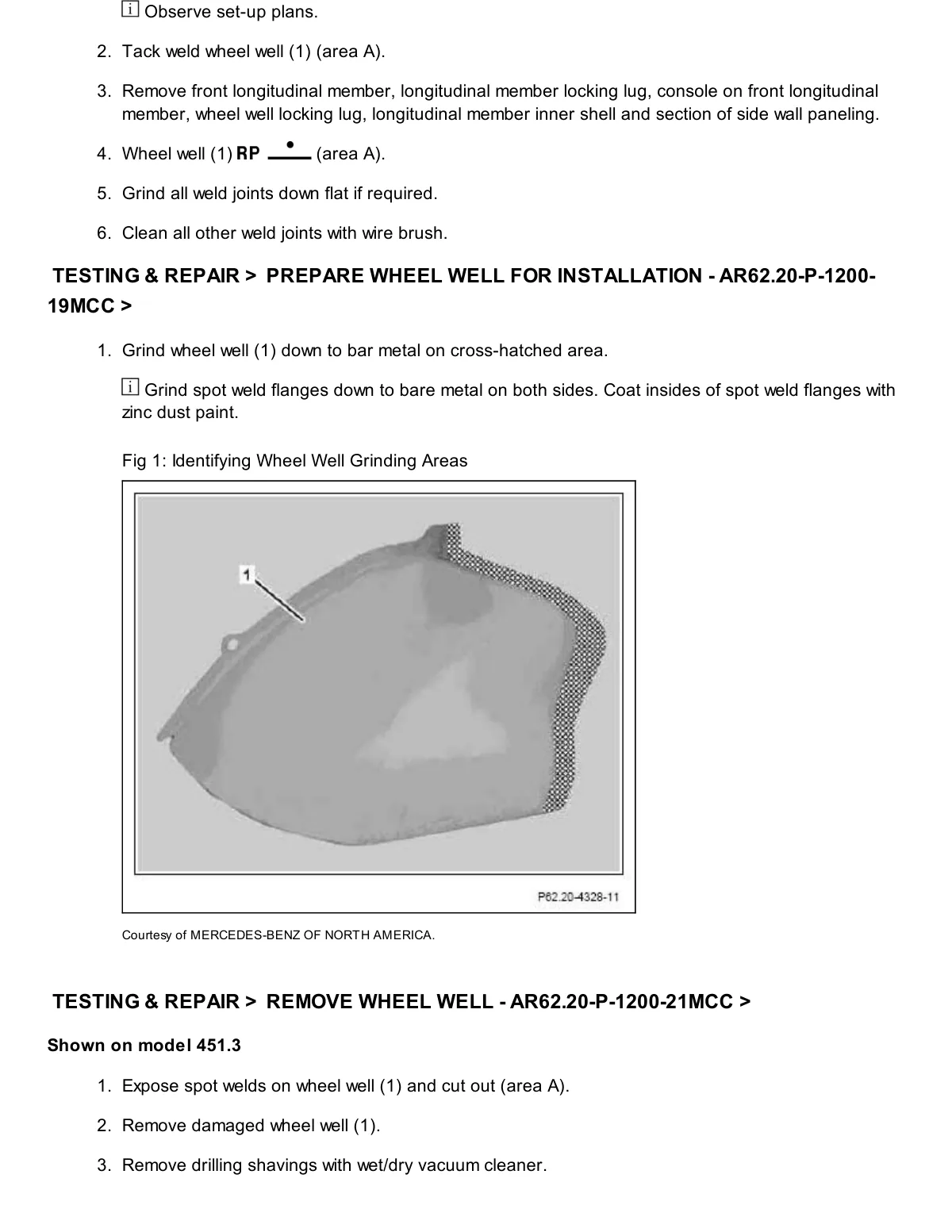

Wheel well grinding areas and removal procedure for Smart 451 chassis, with cross-hatched spot weld flange location diagram.

Diagram showing wheel well grinding preparation areas with numbered callout and cross-hatched pattern indicating weld flange locations.
