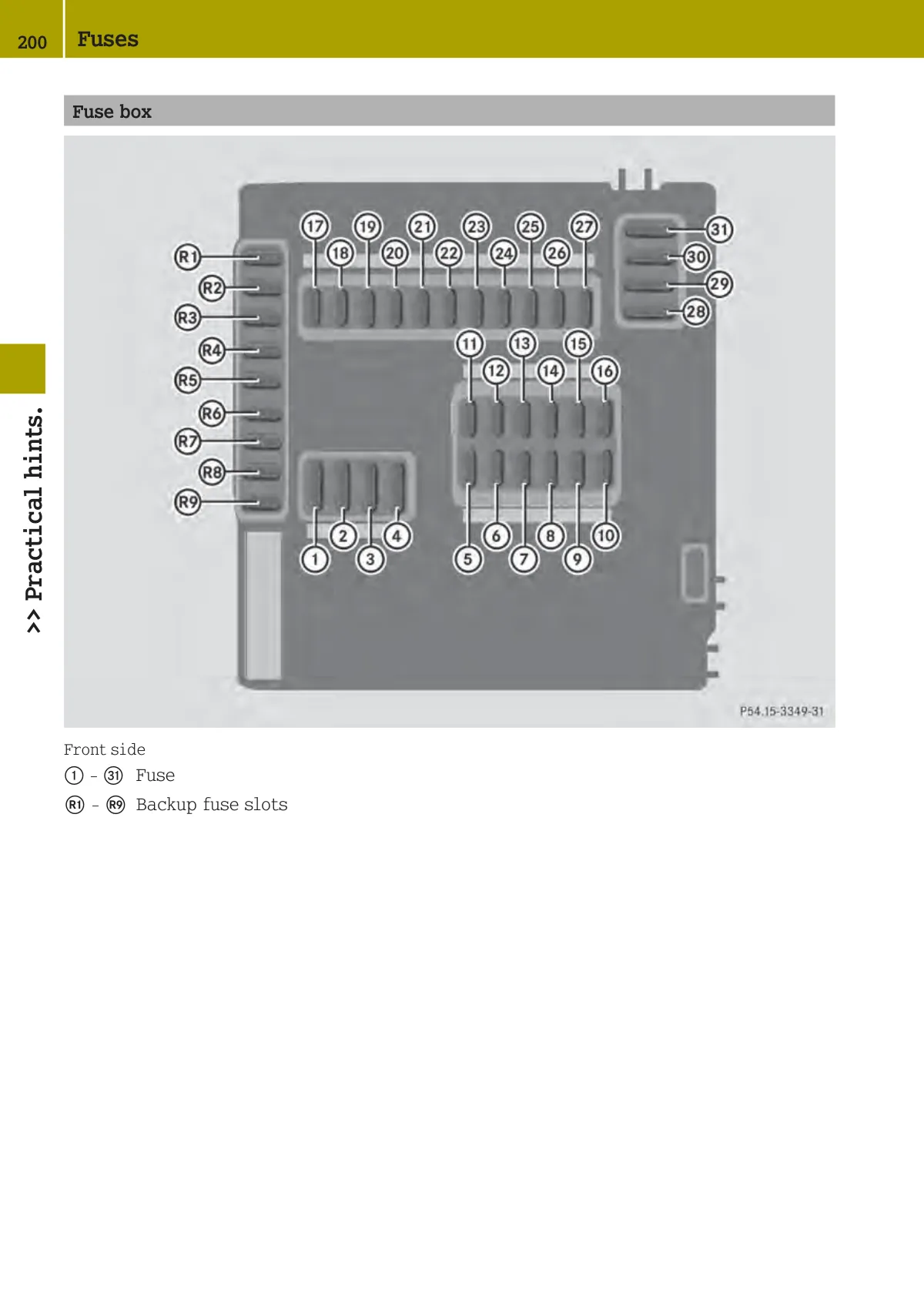

Fuse box front side layout with 31 numbered fuses and 9 backup fuse slots labeled.

Diagram of Smart fuse box showing positions 1-31 for fuses and R1-R9 for backup slots.
