Connector codes, designations, and cable color wiring assignments for Smart fortwo electrical systems.

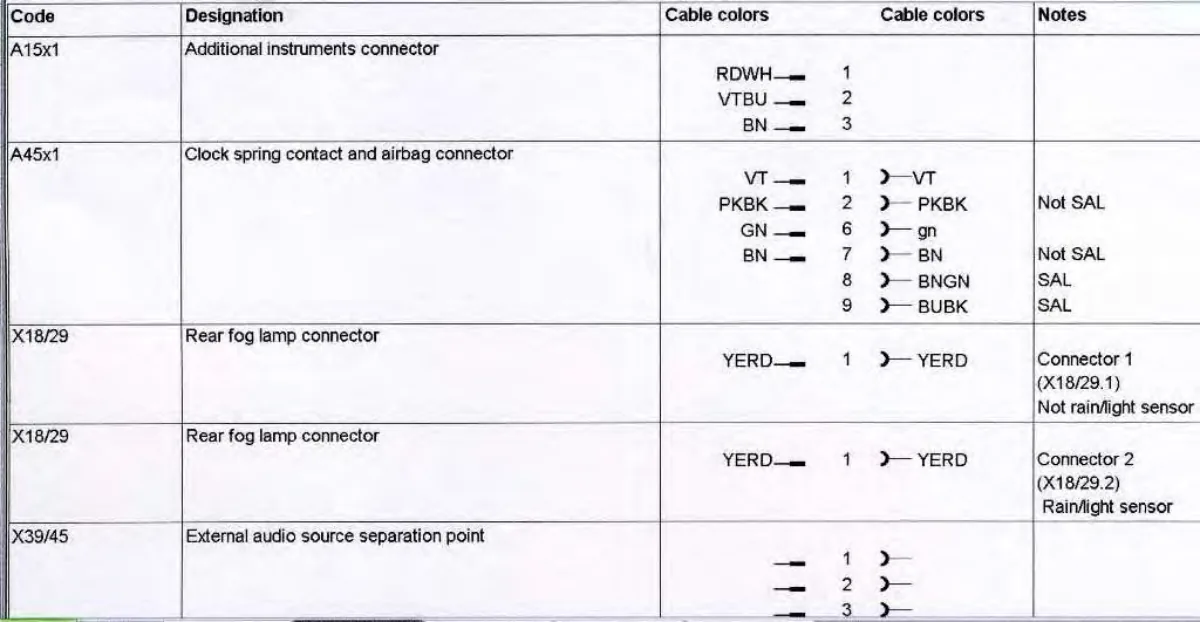

Table showing connector codes, wiring designations, and cable colors for additional instruments, airbag, fog lamps, and audio components.
