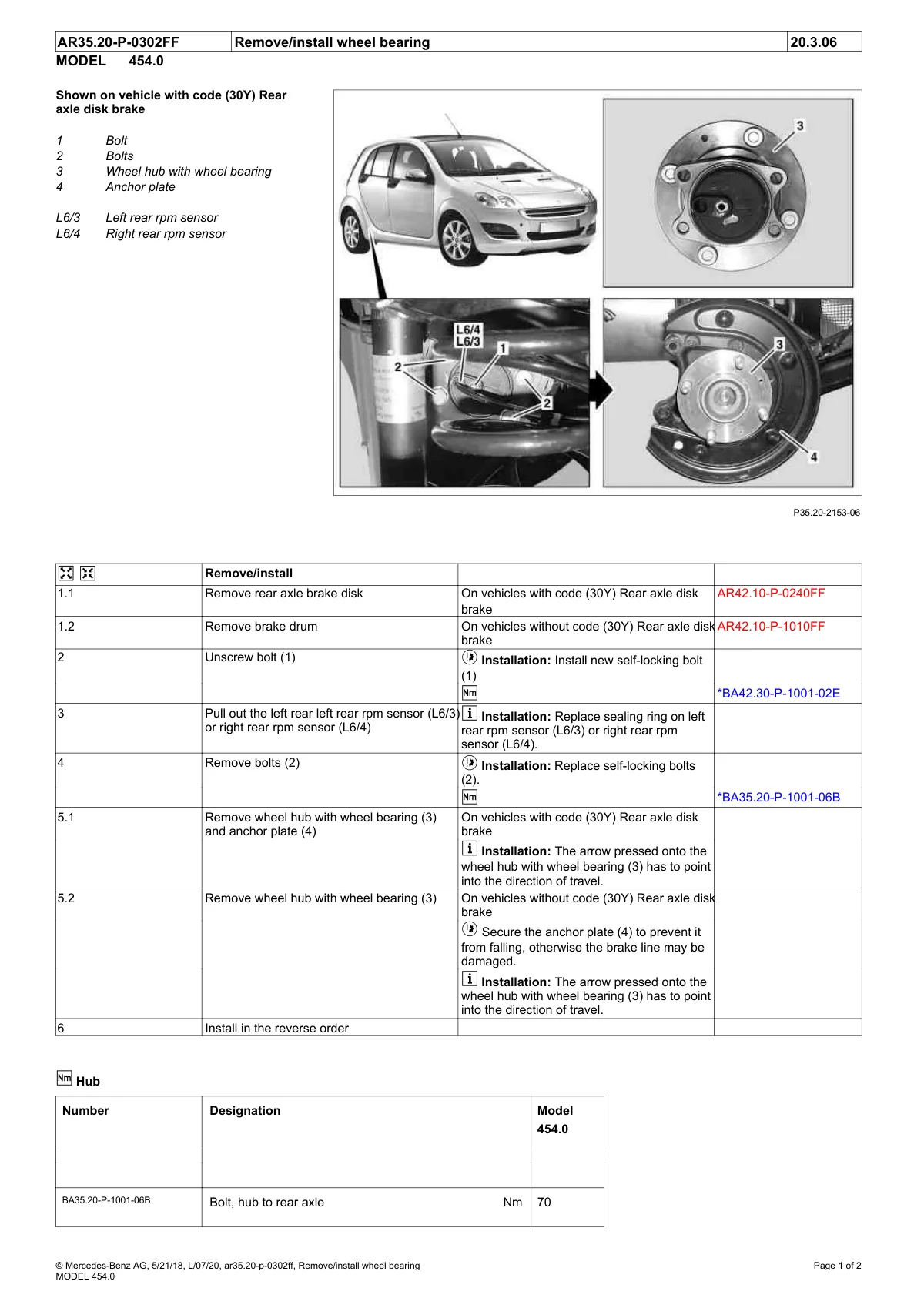

Remove/install wheel bearing on Smart 454.0 rear axle with disk brake assembly and rpm sensors.

Wheel hub and bearing removal diagram for Smart Fortwo 454 model showing callout locations.

View full-size image ↗

See all Chassis figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
