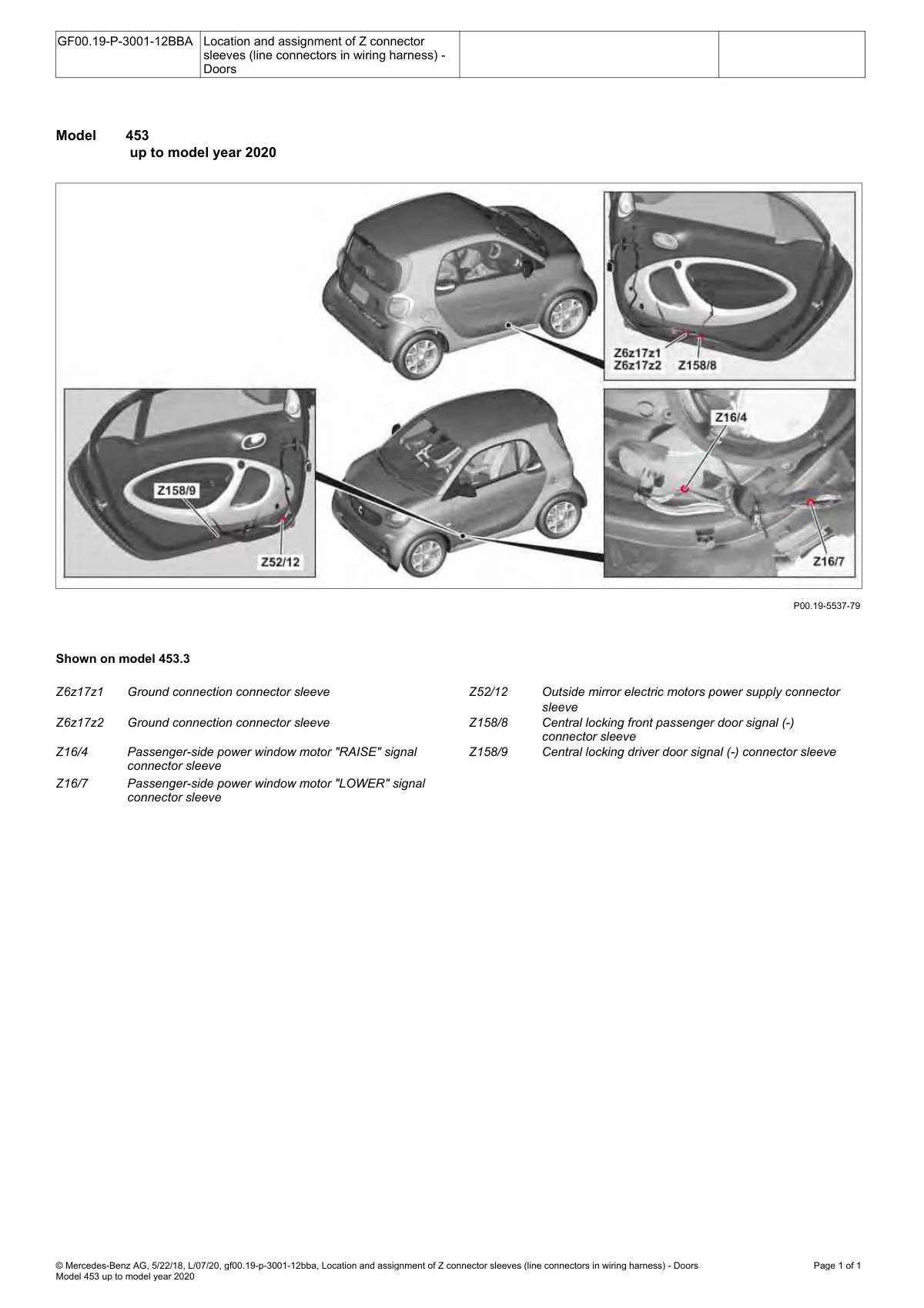

Model 453 door wiring harness Z connector sleeve locations for windows, mirrors, and central locking signals up to 2020.

Smart Fortwo 453 door connector sleeve diagram showing window motor and door lock signal locations.
