Vehicle jump start procedure: battery cover removal and jumper cable connection sequence for low battery rescue.

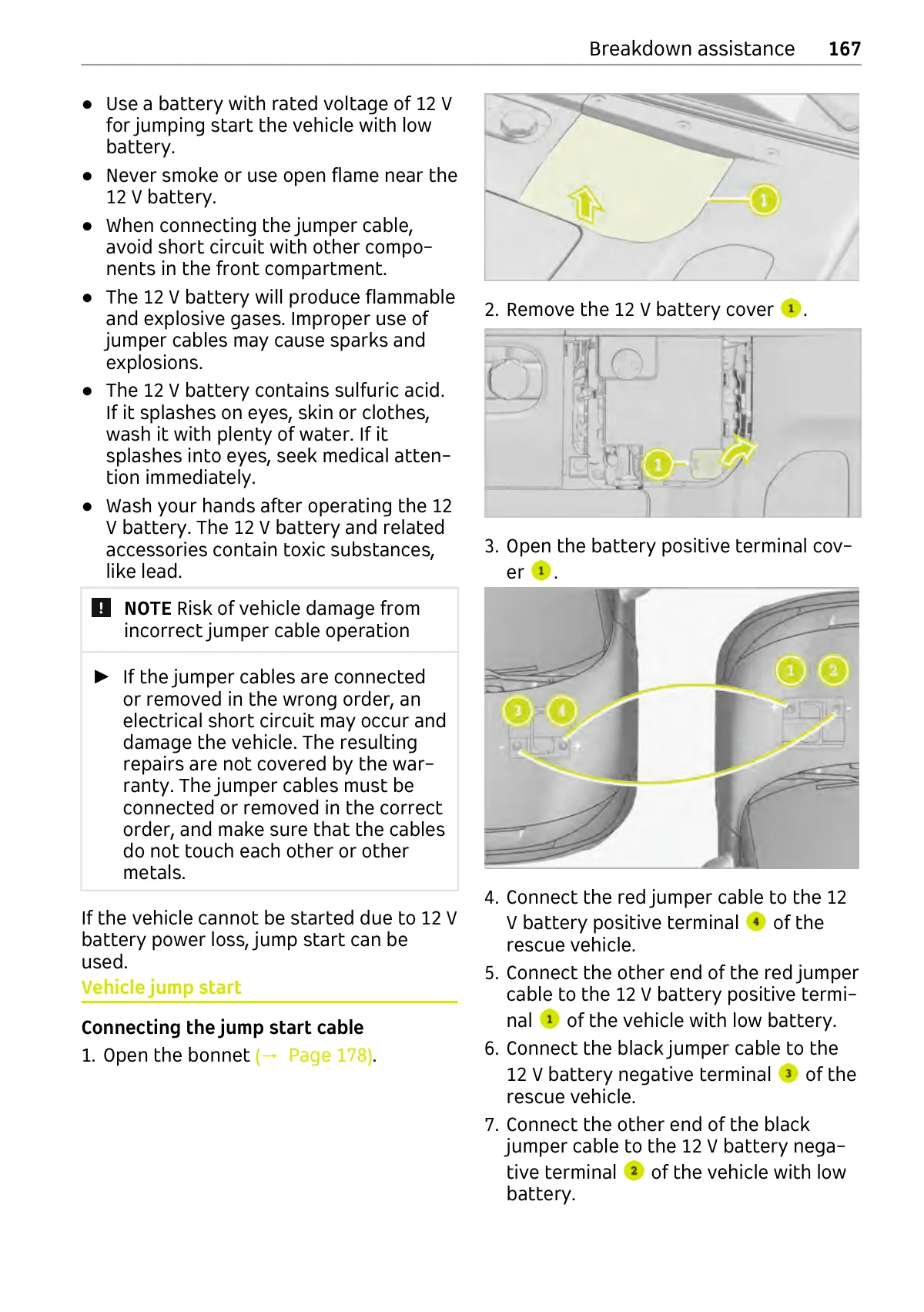

Step-by-step jump starting instructions with numbered callouts showing battery terminal locations and cable connections.
