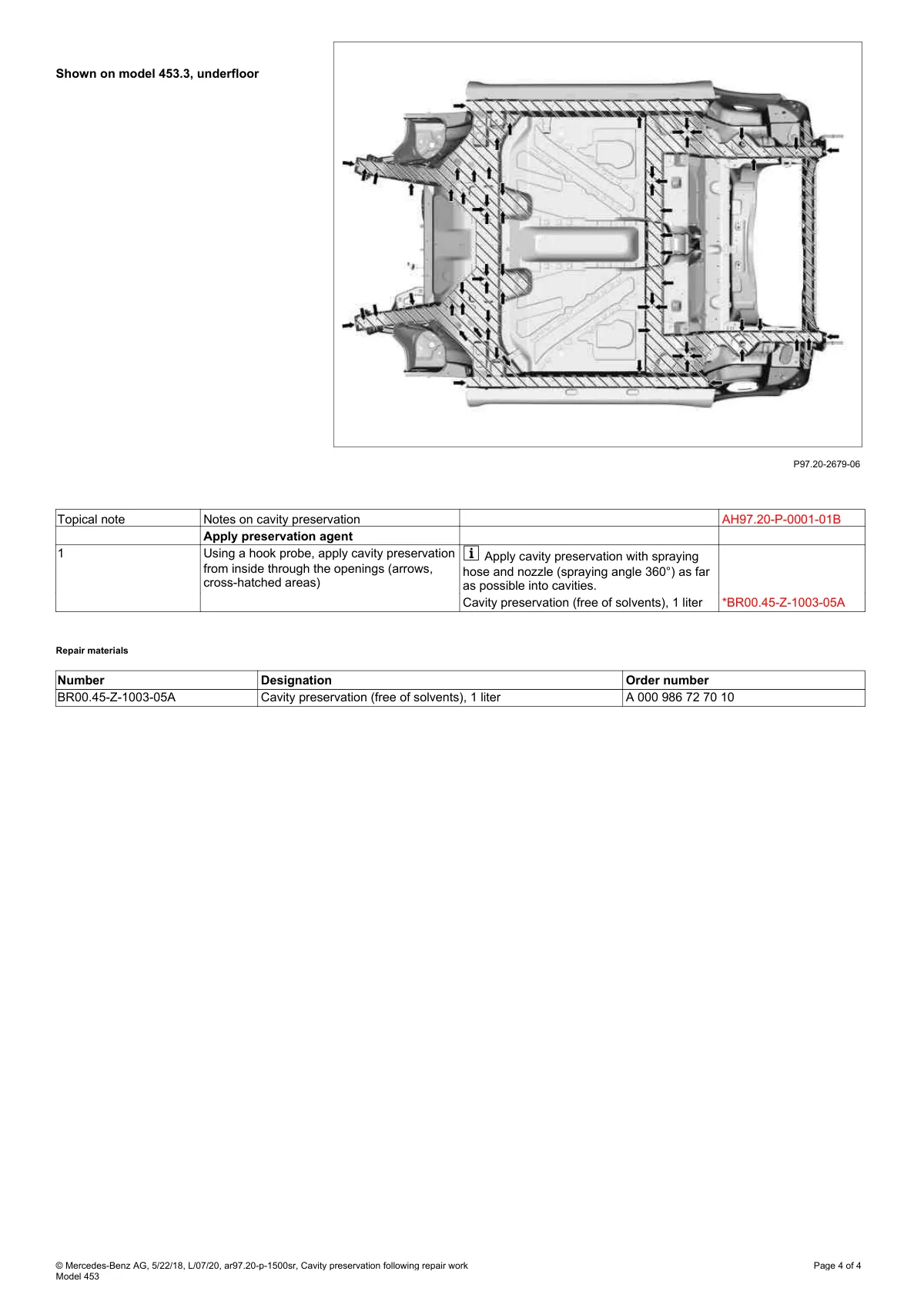

Model 453 underfloor cavity preservation procedure with spraying application points and repair materials.

Underfloor diagram showing cavity preservation spray application areas and product specifications.
