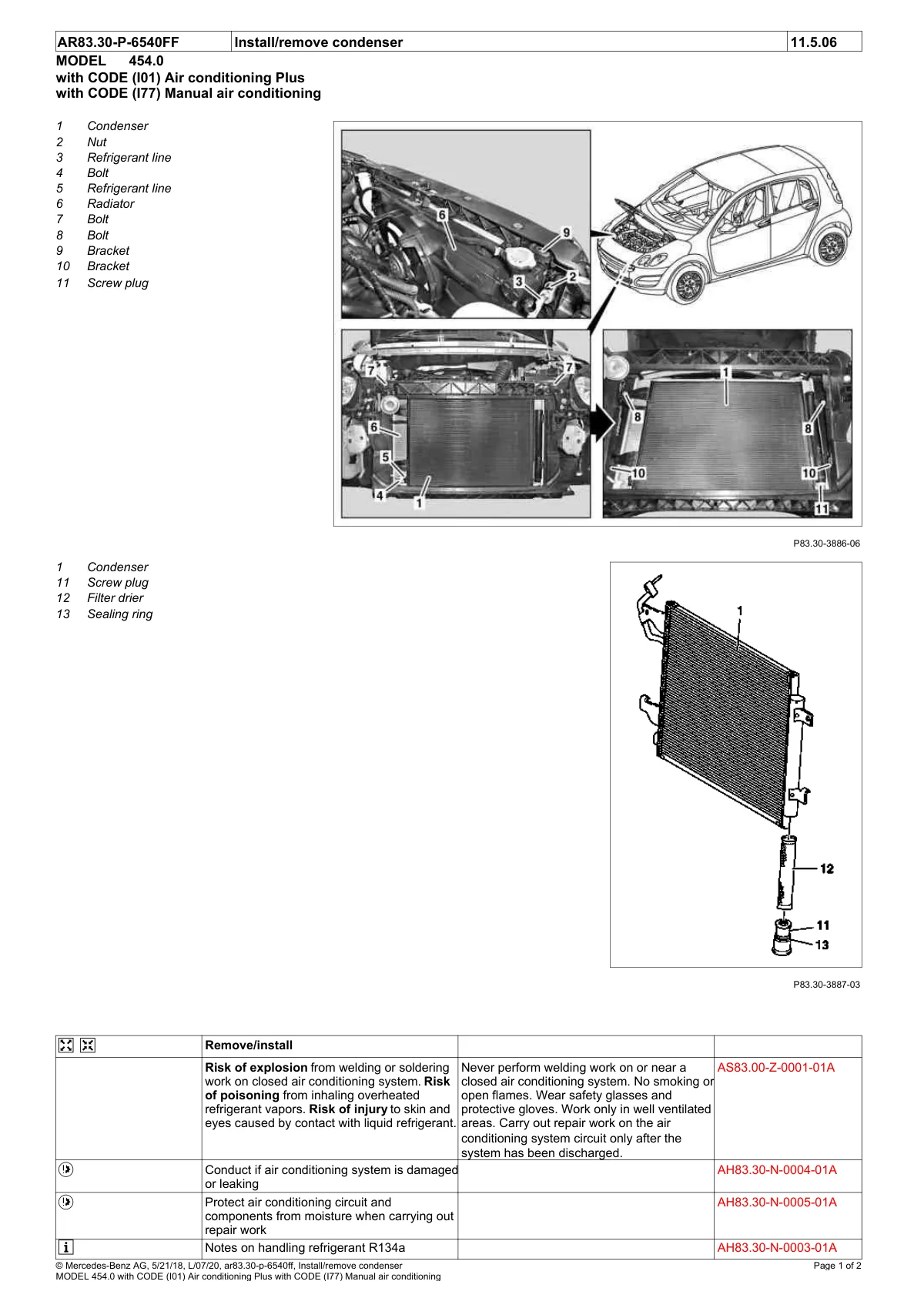

Install/remove condenser assembly 454.0 with AC Plus or manual air conditioning, showing engine bay and radiator locations.

Condenser installation diagram for Smart Fortwo 454 with numbered callouts and multiple views of engine compartment
