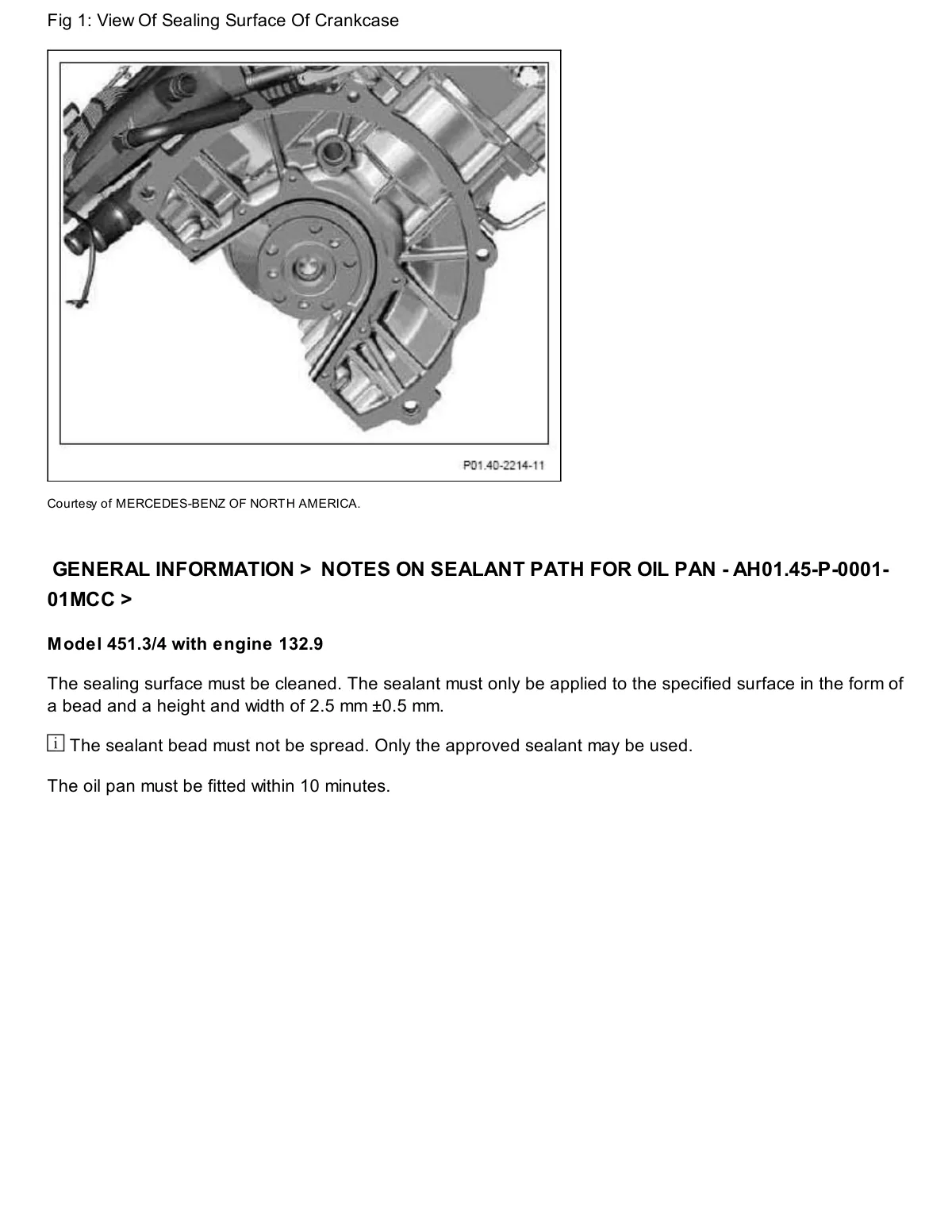

Crankcase sealing surface view for oil pan installation on chassis 451 model 451.3/4 with engine 132.9.

Engine crankcase showing oil pan sealing surface location and orientation.
