Brake pedal bellows components identification and removal procedure for Smart 450/451/452/454 chassis models.

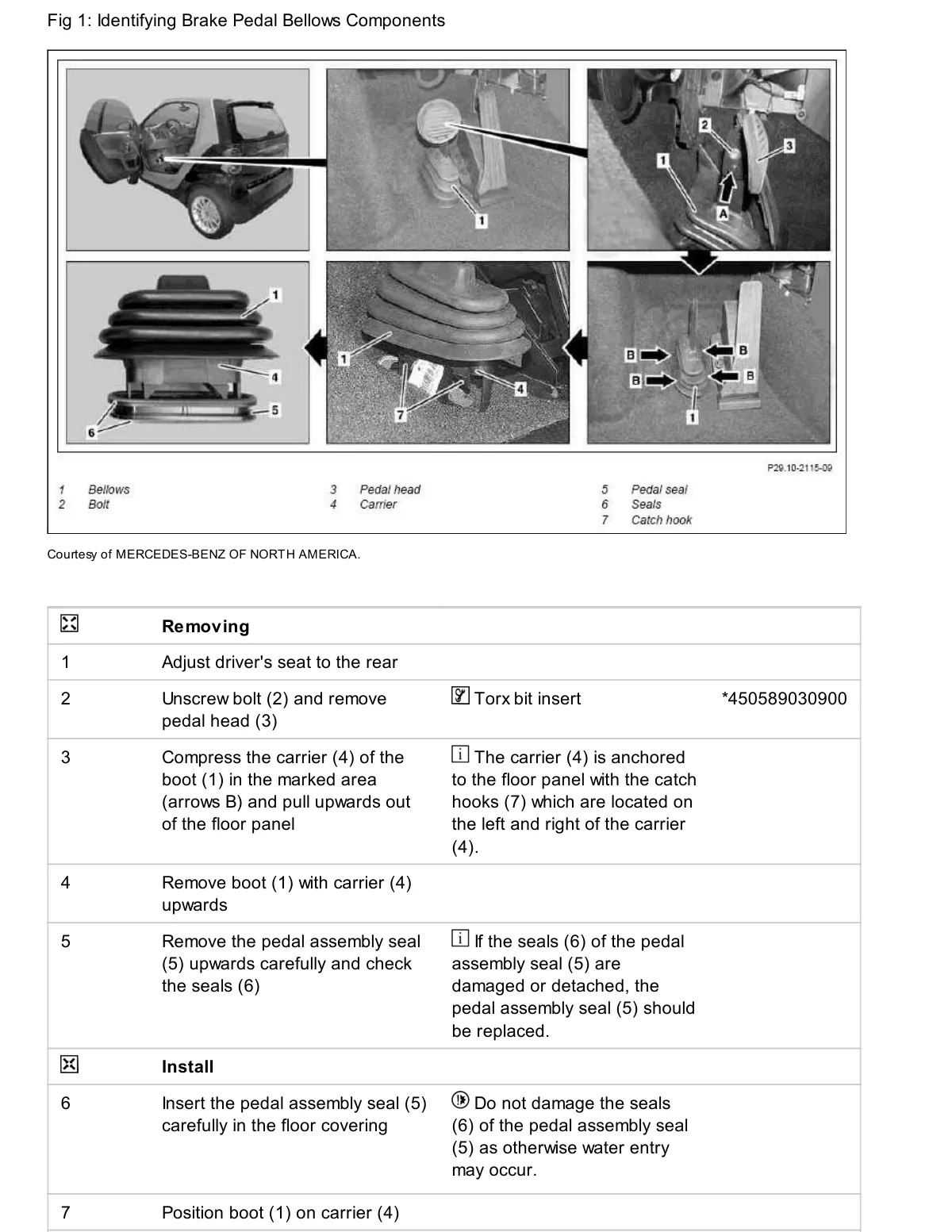

Exploded diagram of brake pedal bellows assembly with numbered callouts and step-by-step removal instructions.
