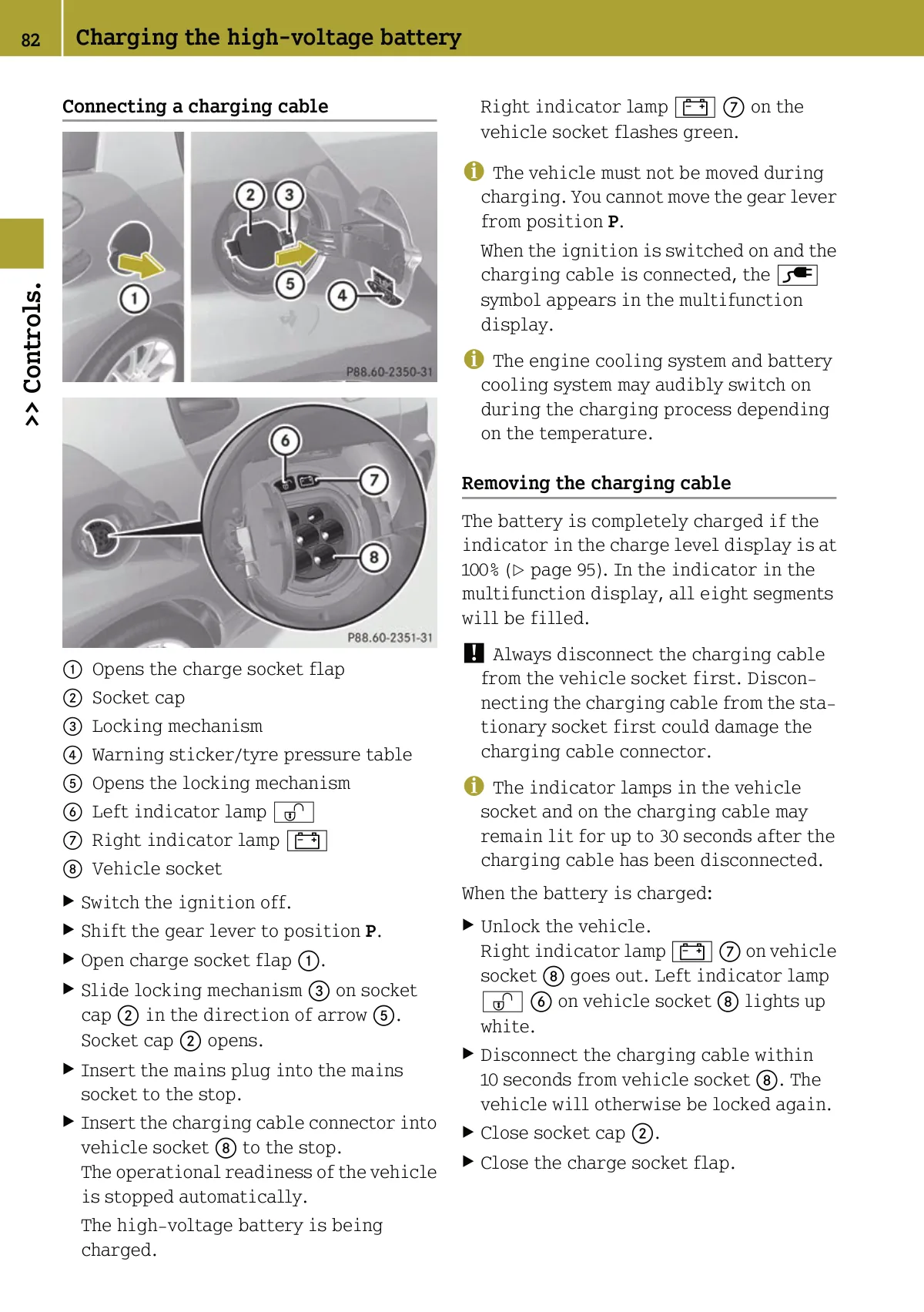

High-voltage battery charging cable connection procedure with socket flap, cap, locking mechanism, and indicator lamps.

Diagram showing EV charging socket location, cable connector insertion steps, and indicator lamp positions.
