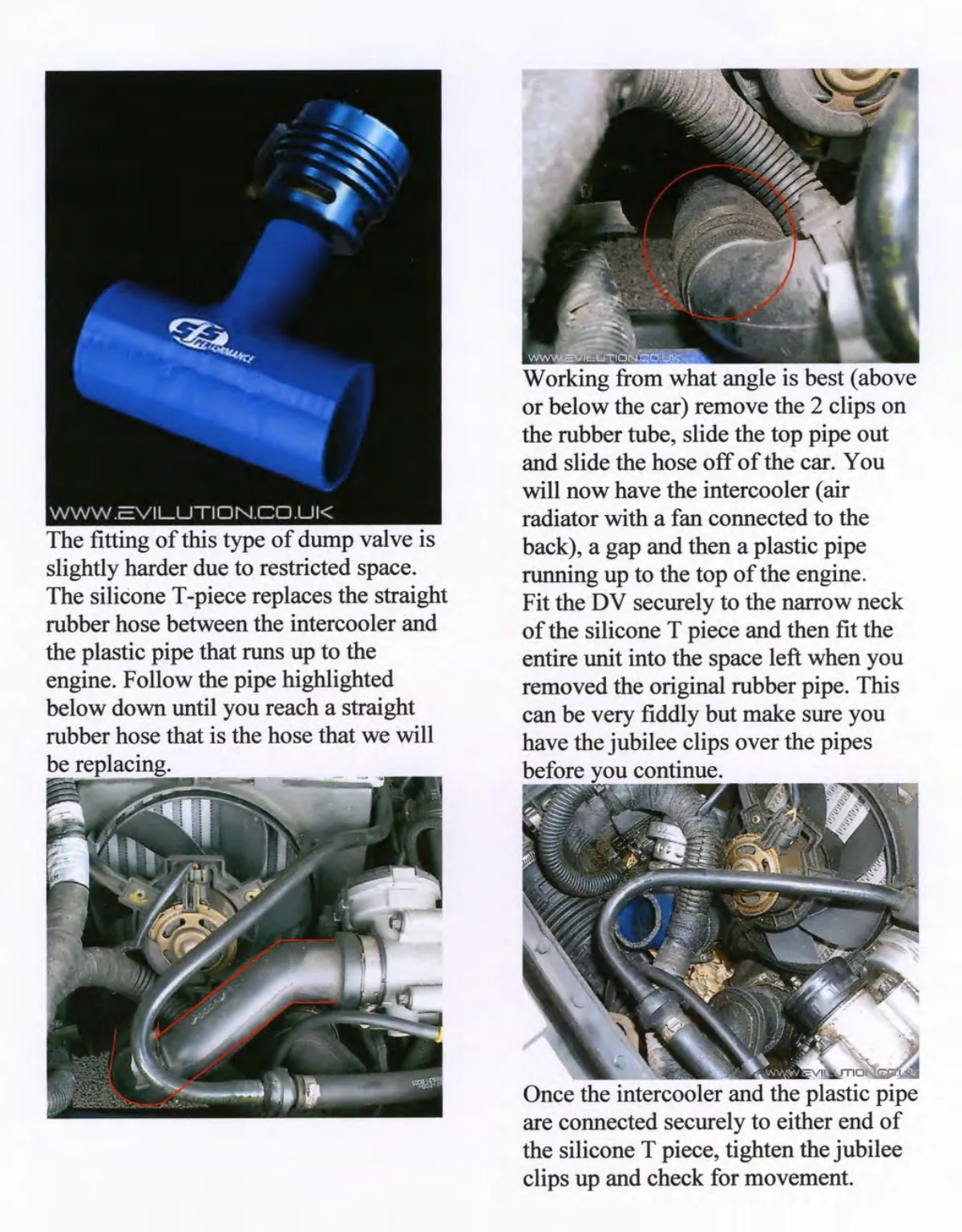

Intercooler intake pipe modification procedure: dump valve fitting, rubber hose removal, silicone T-piece installation on 450/451 chassis.

Four images showing dump valve, intercooler hose clips, engine bay pipe routing, and completed silicone T-piece installation with jubilee clips.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
