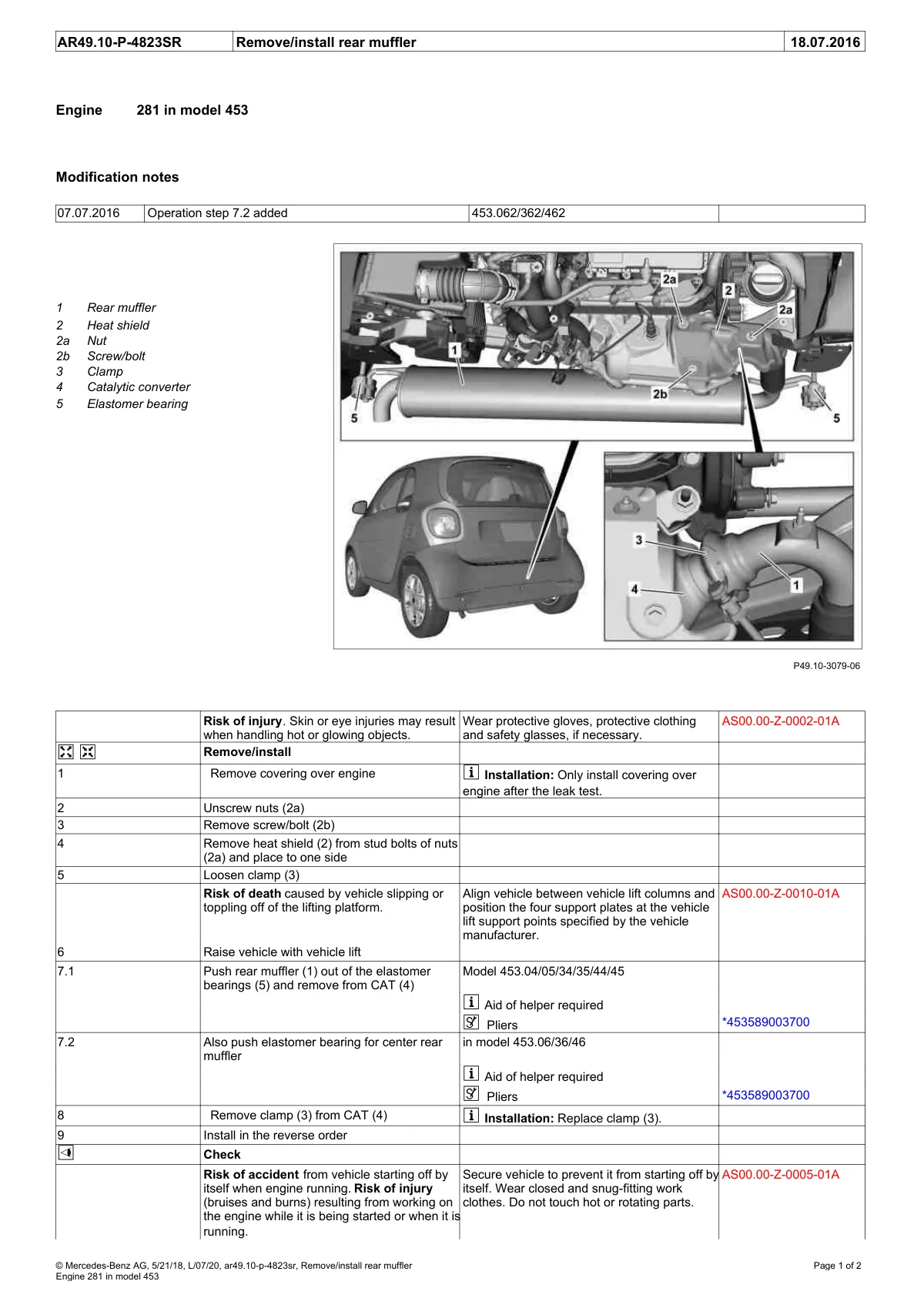

Rear muffler removal/installation procedure for 453 with 281 engine, showing heat shield, nuts, screwbolt, clamp, and elastomer bearing locations.

Exploded view diagram of rear muffler assembly and step-by-step removal procedure with numbered callouts
