Fuel tank assembly components including charcoal canister, pressure sensor, pump, and hose clamp locations.

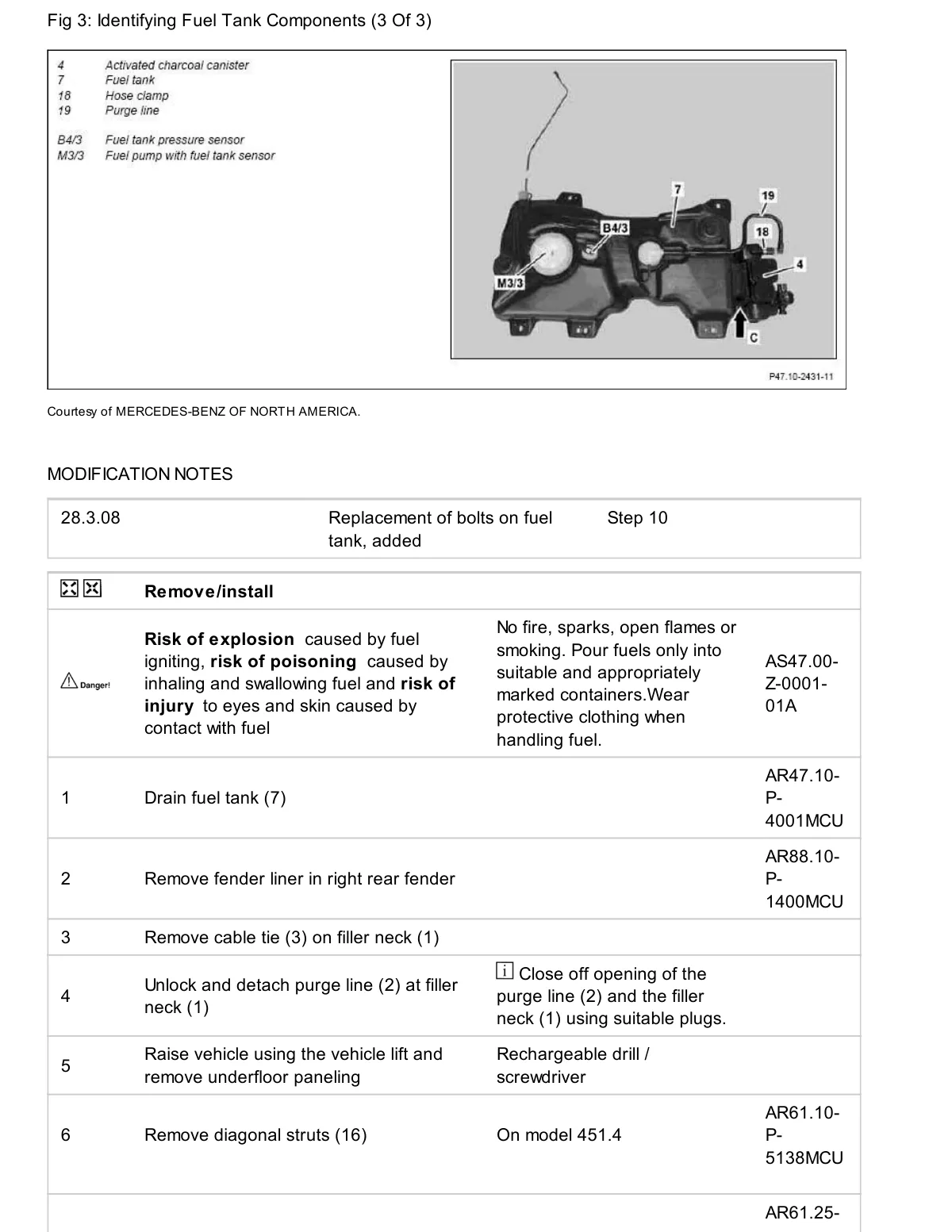

Fuel tank component diagram with labeled callouts 4, 7, 18, 19, B4/3, M3/3 and modification notes for fuel tank service.
