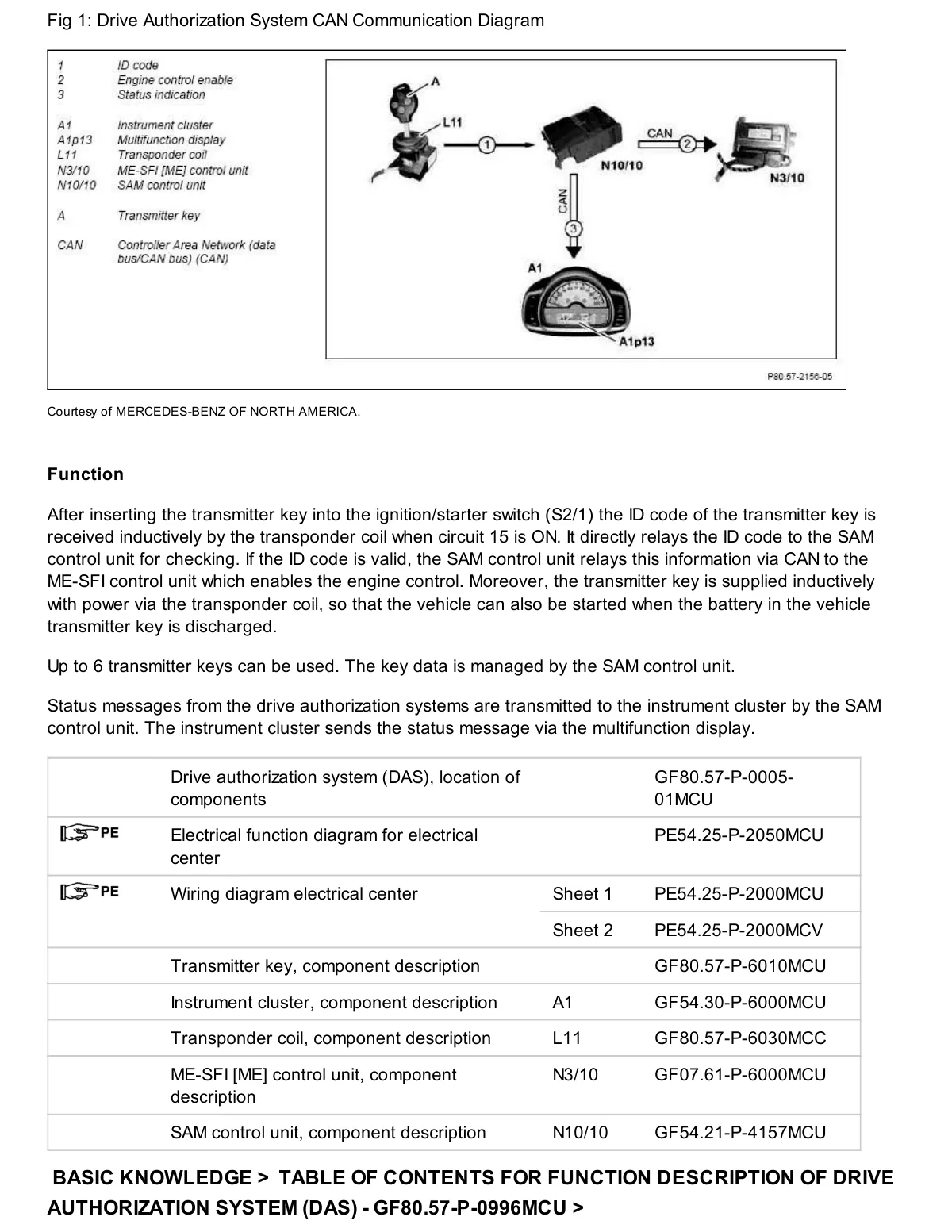

Drive Authorization System CAN communication diagram showing transmitter key, transponder coil, and SAM control unit connectivity for Smart fortwo.

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
