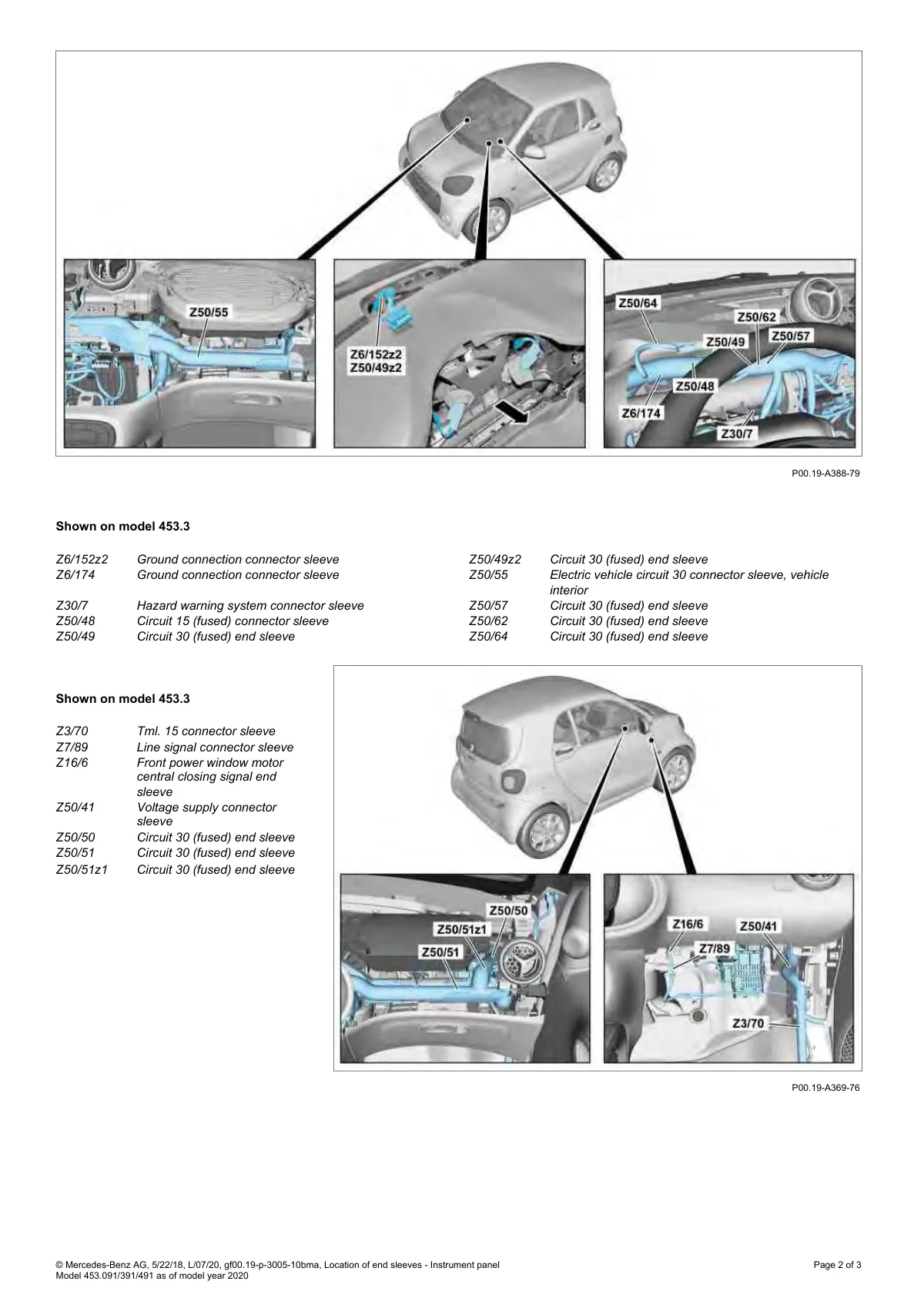

Smart Fortwo 453 electrical connector sleeves locations in engine bay, door, and interior areas with part number callouts.

Two Smart Fortwo 453 diagrams showing connector sleeve locations throughout vehicle with labeled part numbers.

View full-size image ↗

See all Electrical figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
