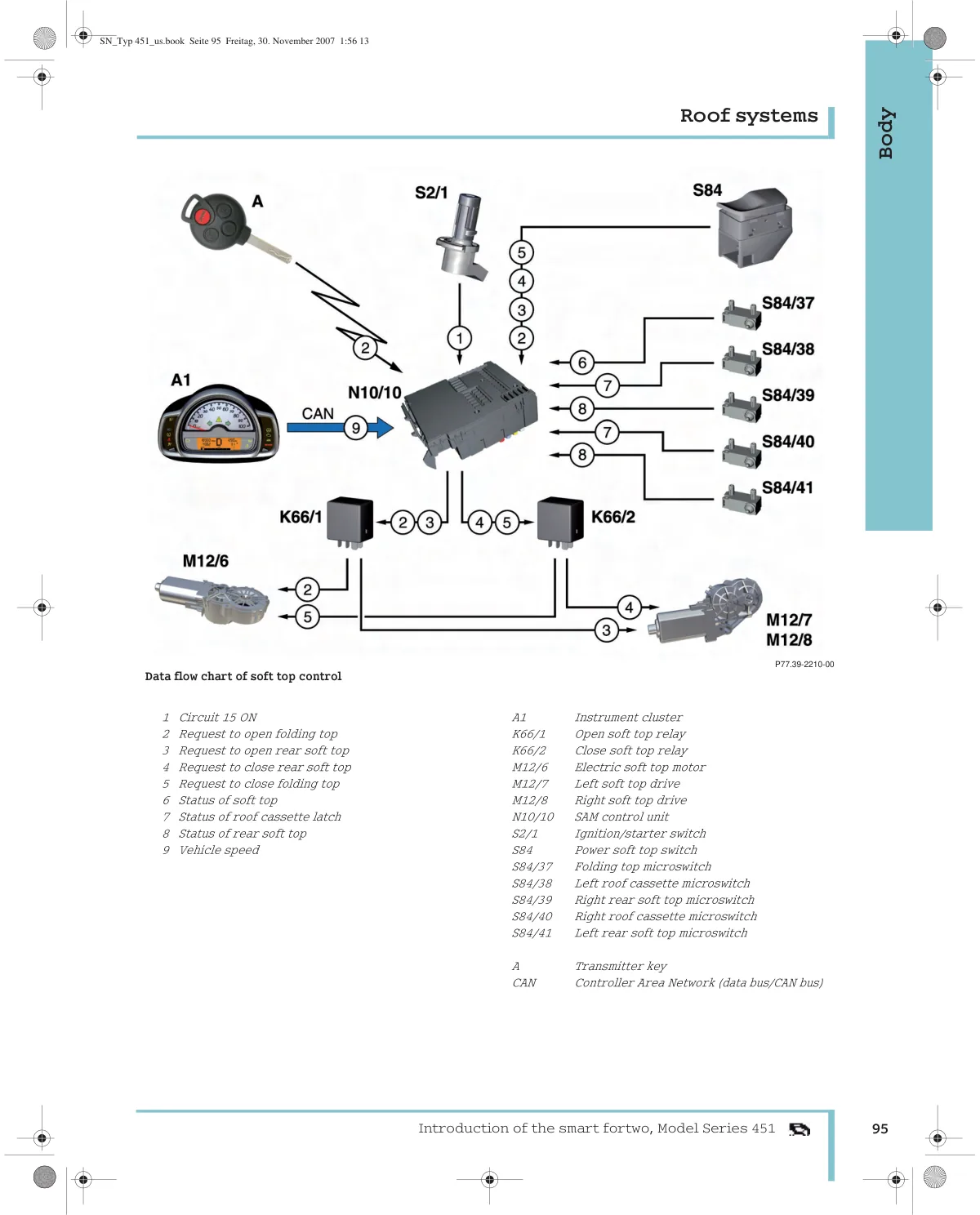

Soft top roof control system data flow chart with CAN bus communication for smart fortwo 451 cabrio models.

Schematic diagram showing soft top motor, relays, switches, and control unit connections for convertible roof operation.
