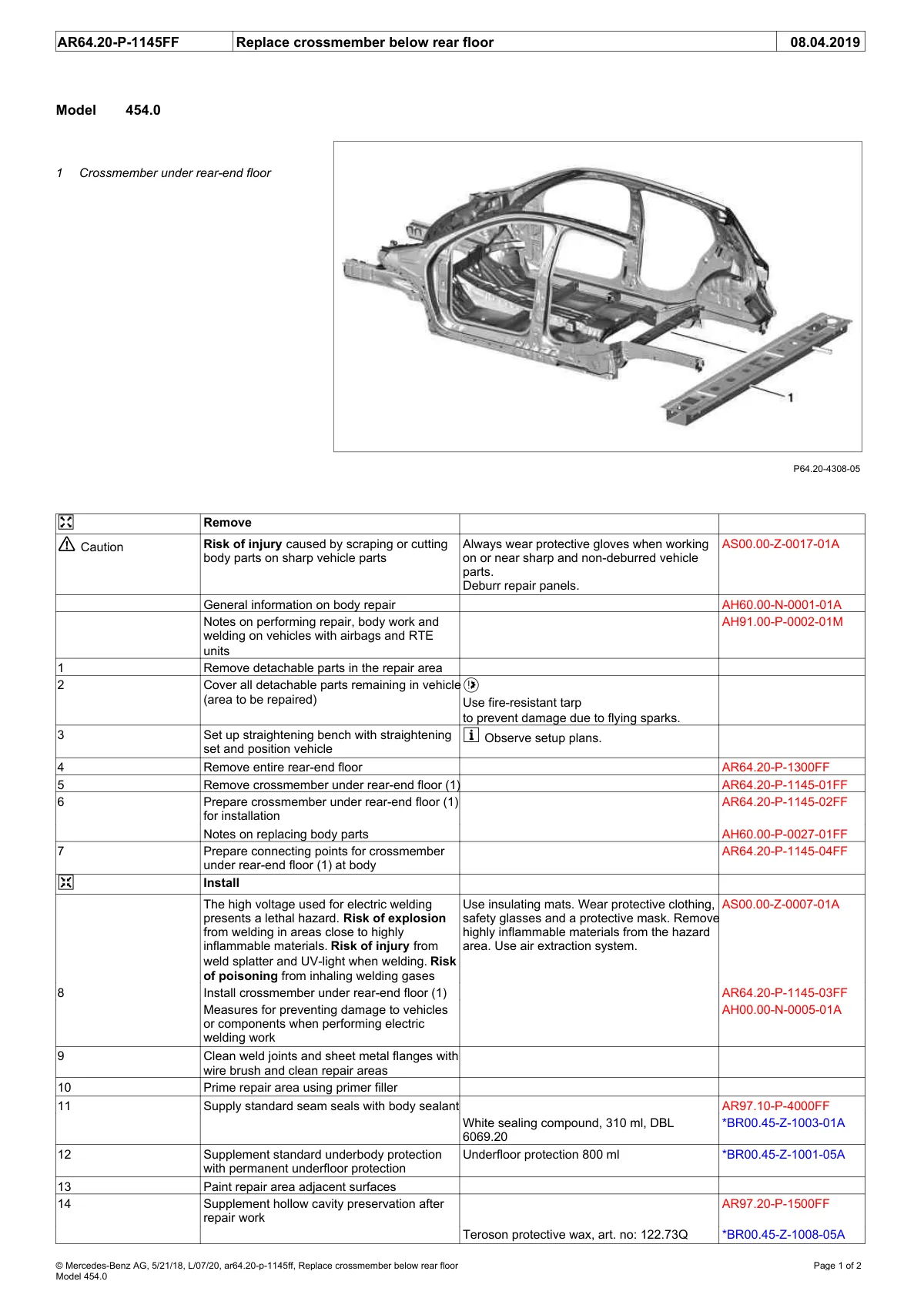

Replace crossmember below rear floor on Smart 454 model chassis; exploded view showing removal and installation procedure.

Exploded view diagram of rear floor crossmember removal for Smart 454 vehicle model.
