Refrigerant line removal and installation between expansion valve and front connecting point, Smart 453 with engine 281.

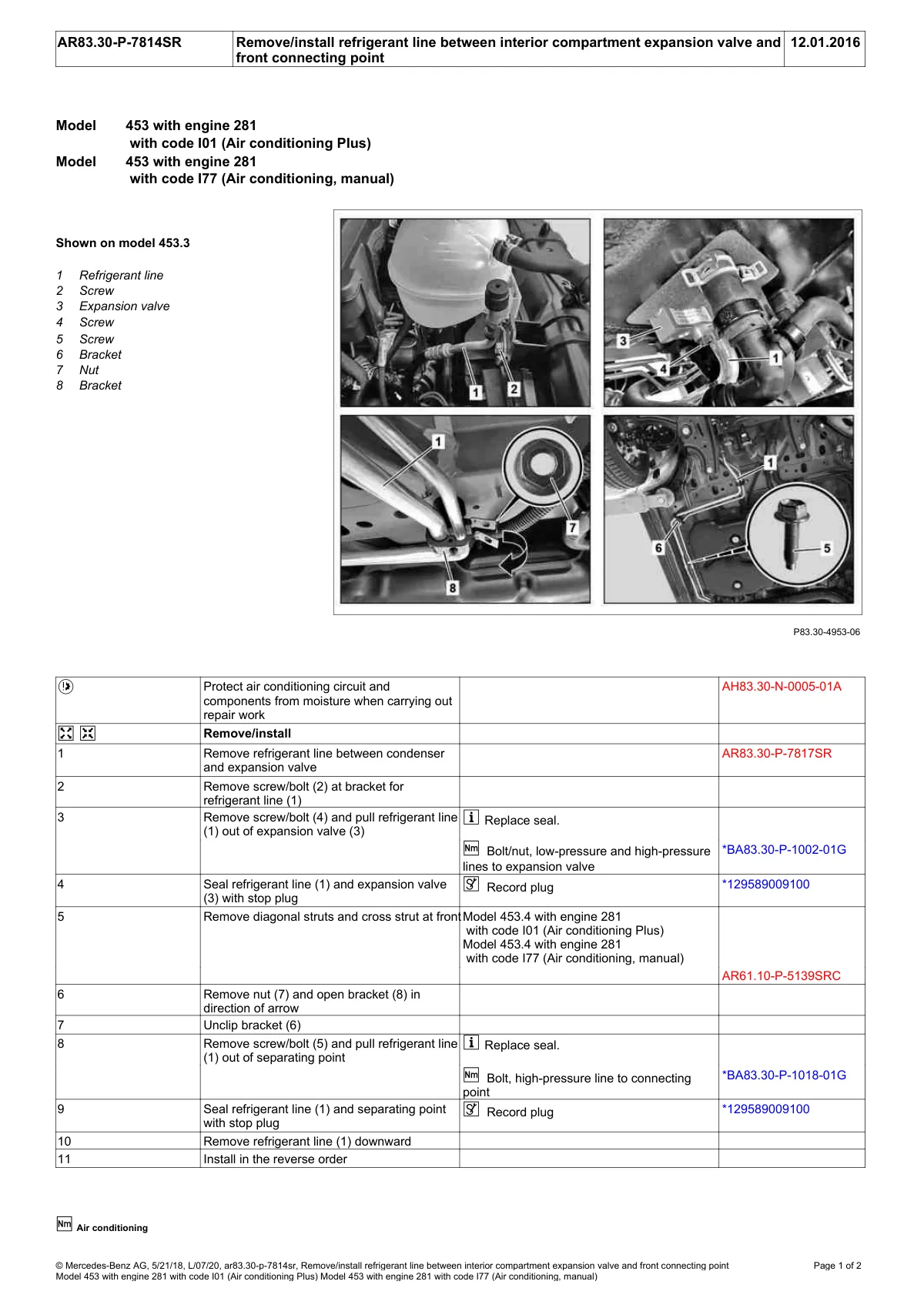

Four black-and-white photos showing AC refrigerant line service steps with numbered callouts and parts labeled.
