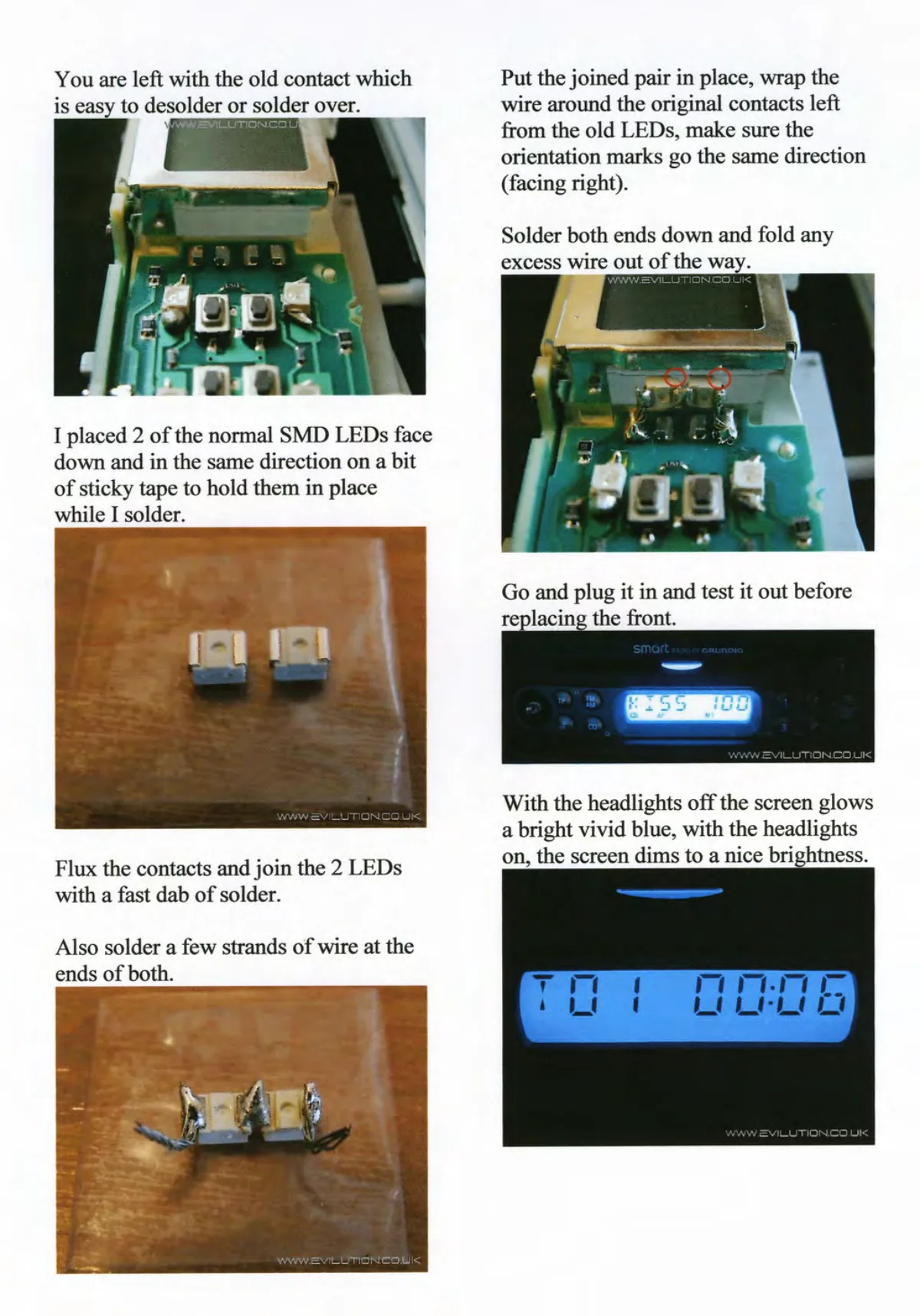

LED soldering procedure for smart dashboard cluster modification, including contact preparation, SMD LED joining, and blue display testing.

Step-by-step photos showing soldered LED components on circuit board and blue dashboard display test results.
