Poly V-belt damage patterns and inspection procedure for 454.0 engine with damage identification chart and service steps.

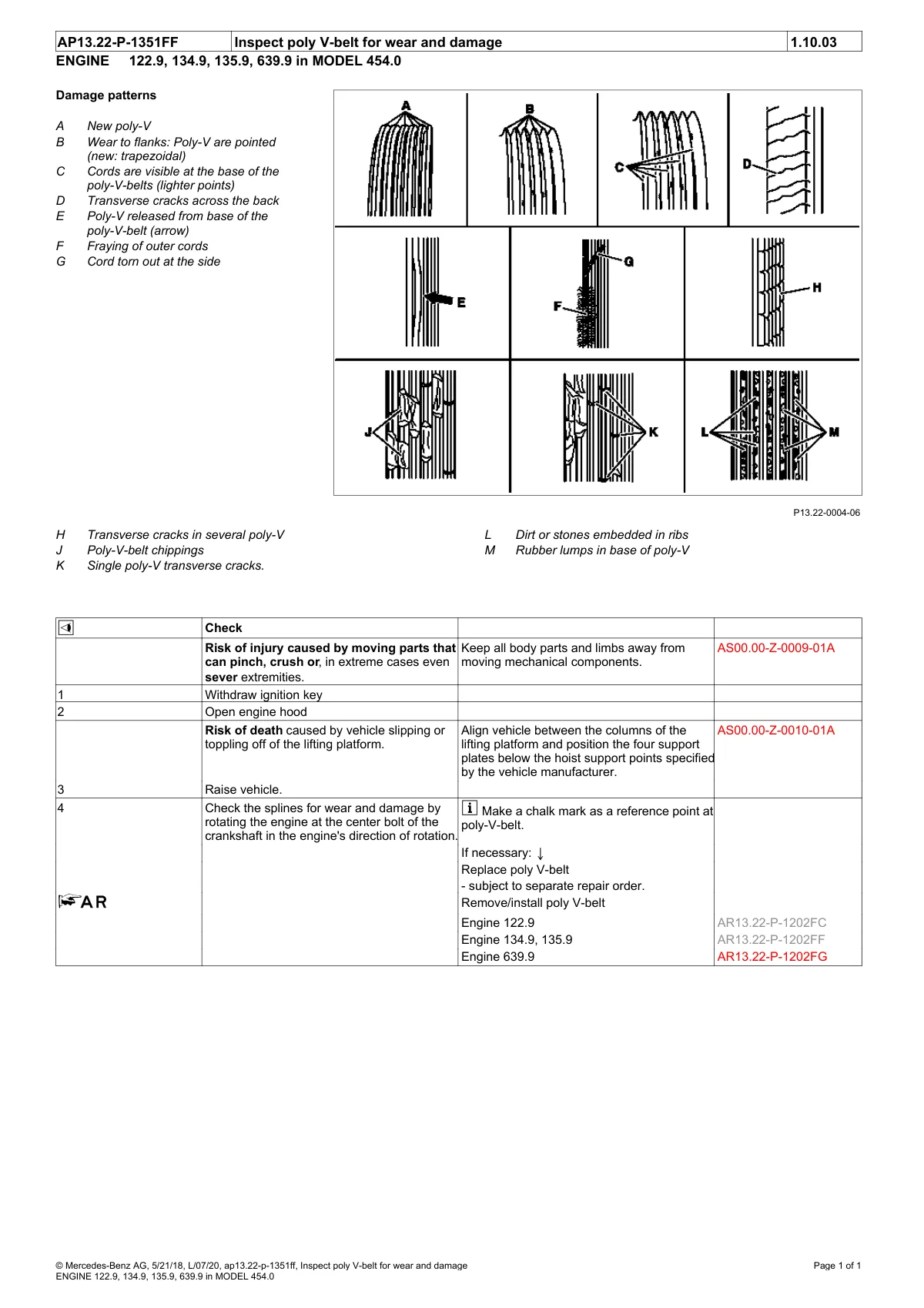

Damage pattern chart showing nine types of belt wear with callout labels A through M, plus inspection checklist table.
