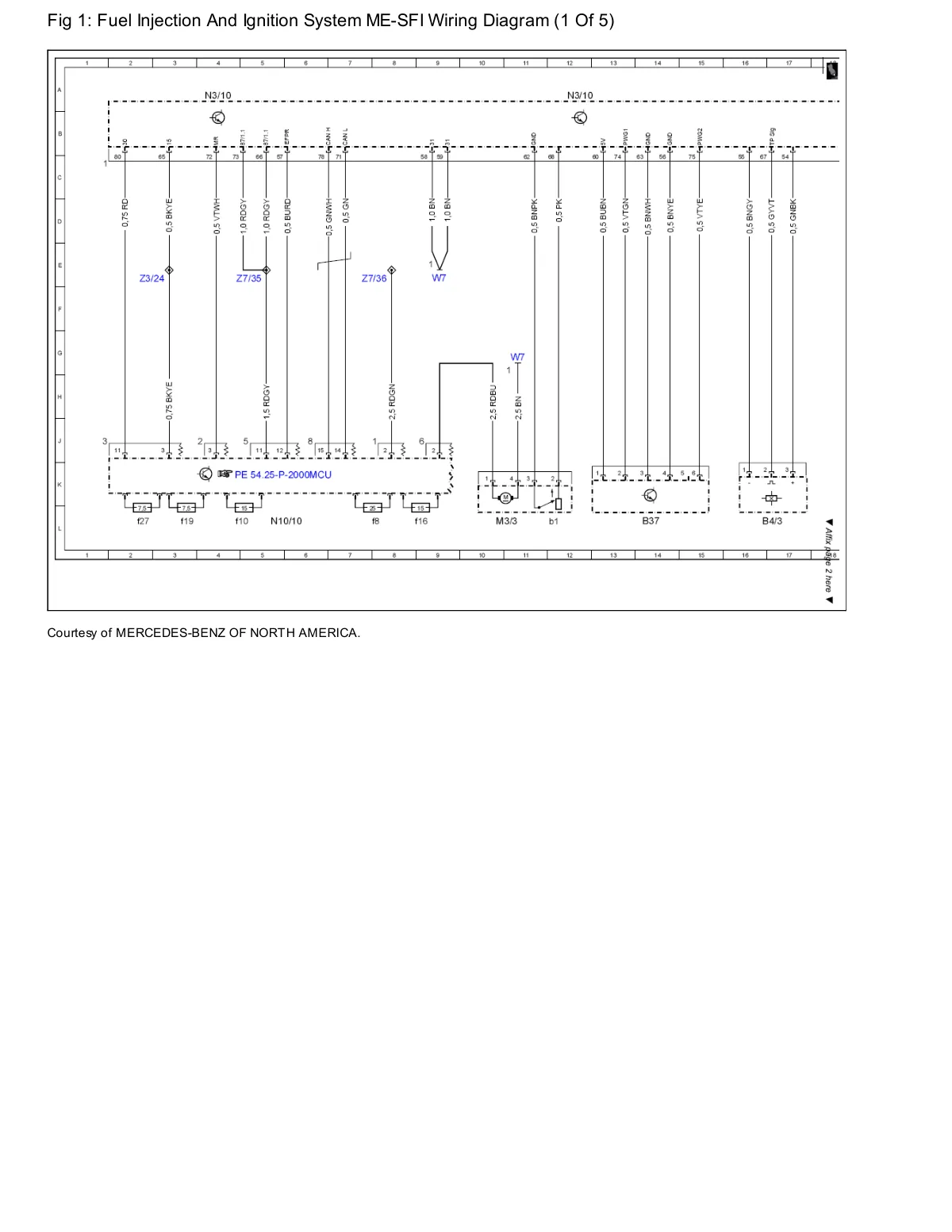

Fuel injection and ignition system ME-SFI wiring diagram page 1 of 5, showing sensor and injector circuits.

Complex wiring schematic with multiple connector circuits, relays, and sensor connections labeled with part numbers.
