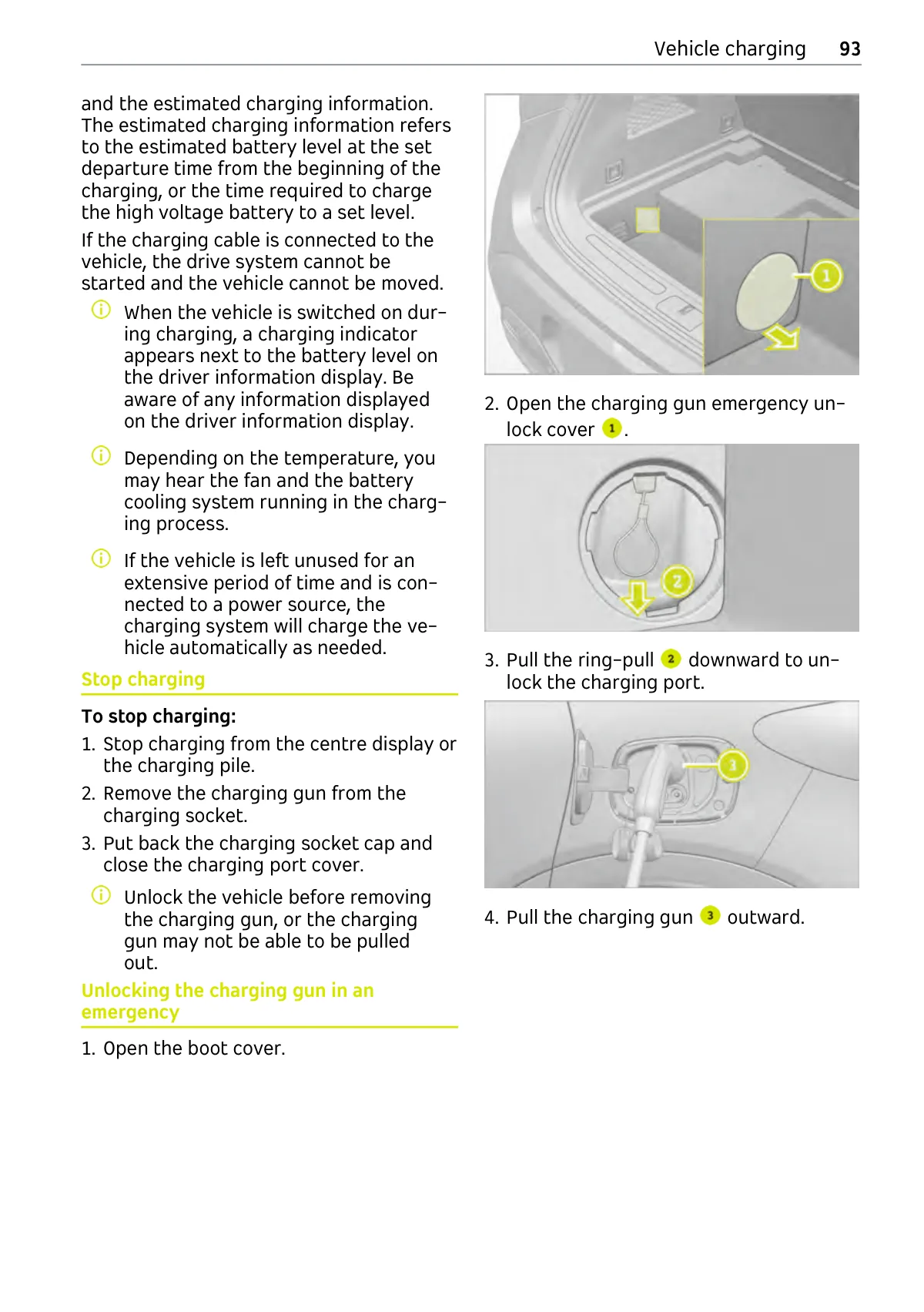

EV charging port unlocking procedure with numbered steps showing emergency unlock cover, ring-pull mechanism, and charging gun removal.

Four labeled diagrams showing steps to unlock and remove charging gun from smart EV charging port.
