Heater/AC operating unit (N23) removal and installation procedure with component identification diagram for Smart 451.3/4 up to 30.8.10.

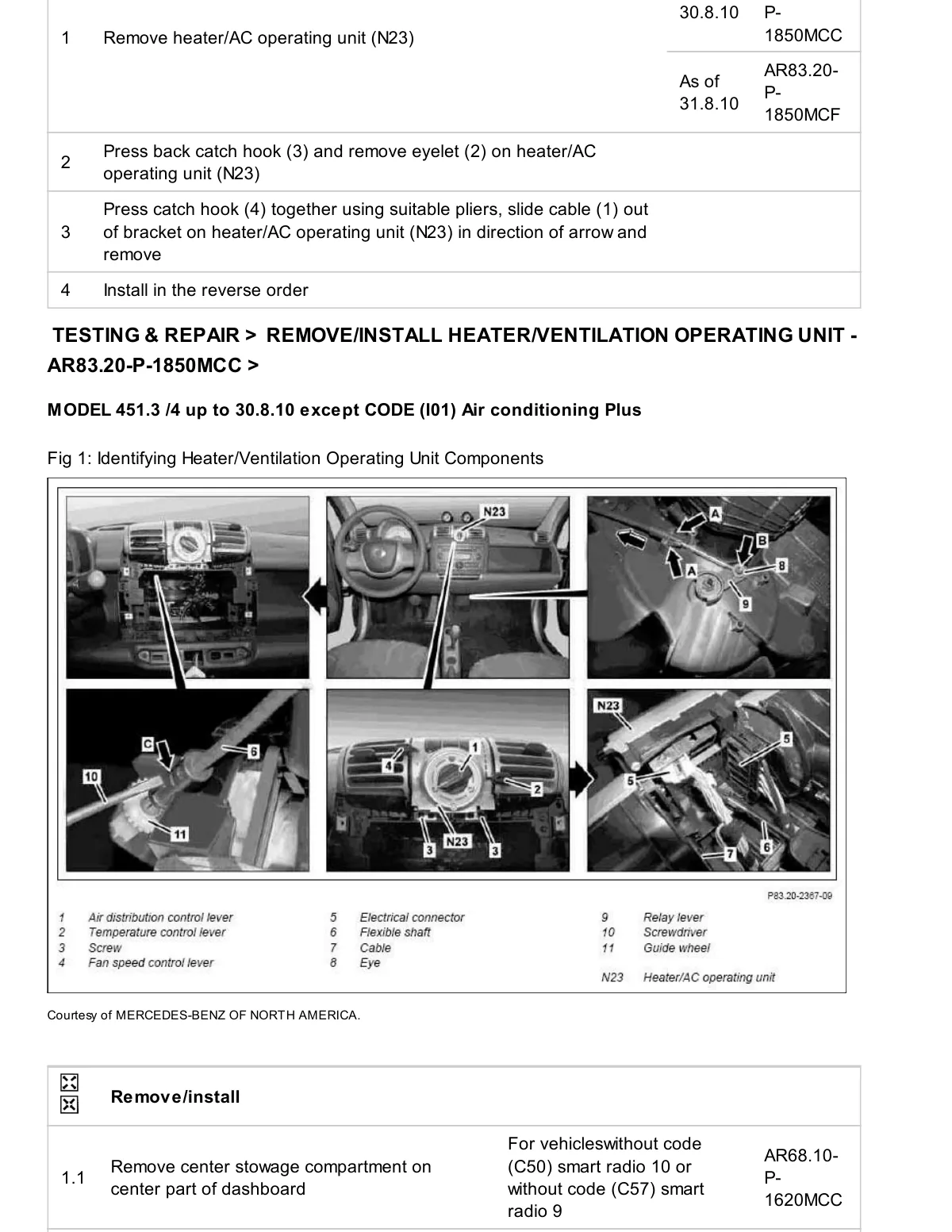

Service procedure steps and labeled photographs showing heater/AC unit components and removal sequence.
