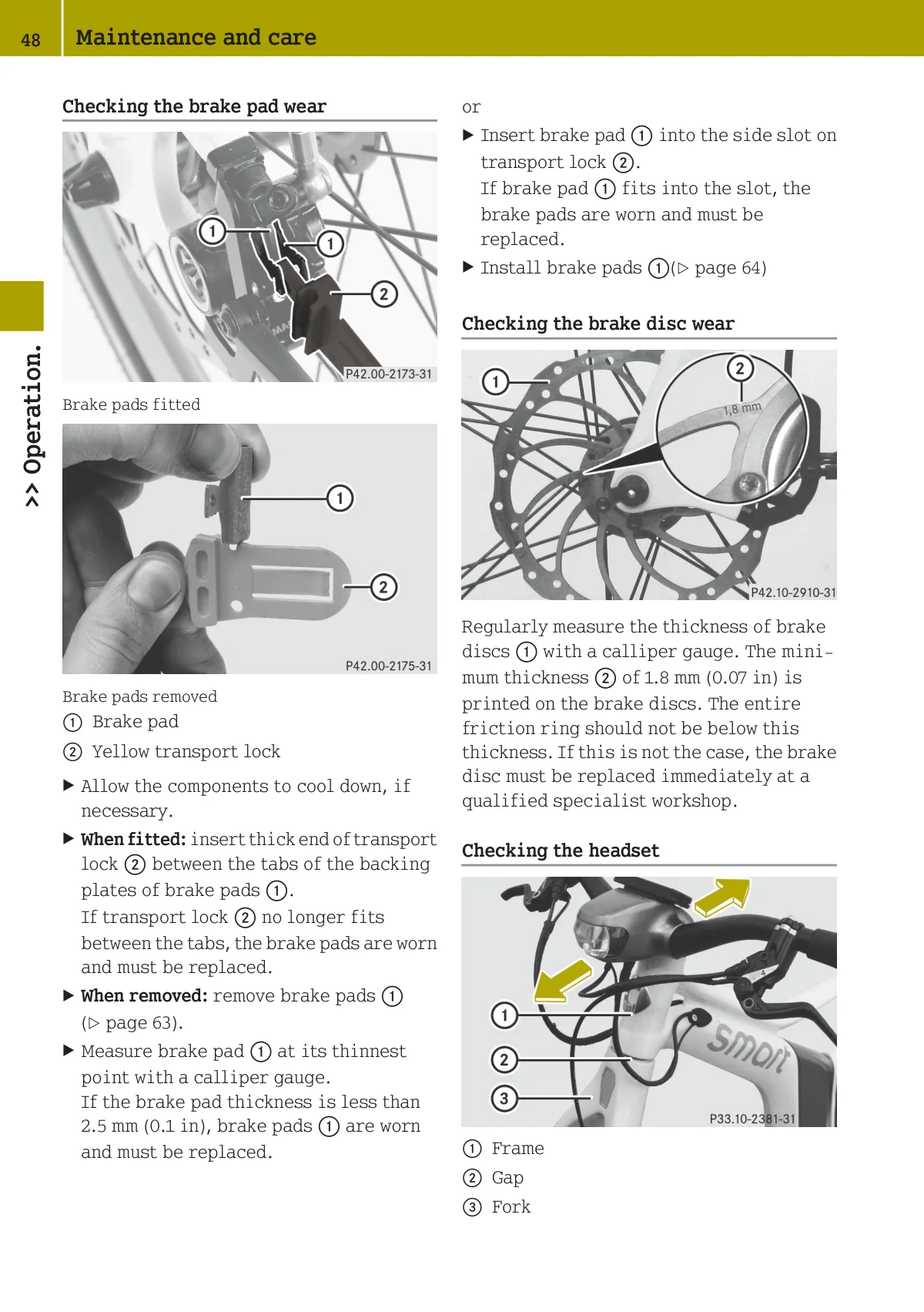

Brake pad wear inspection, disc thickness measurement, and headset adjustment procedures for Smart eBike maintenance.

Three sections showing brake pad inspection with transport lock, brake disc thickness gauge measurement at 1.8mm minimum, and headset frame/gap/fork adjustment points.

View full-size image ↗

browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
