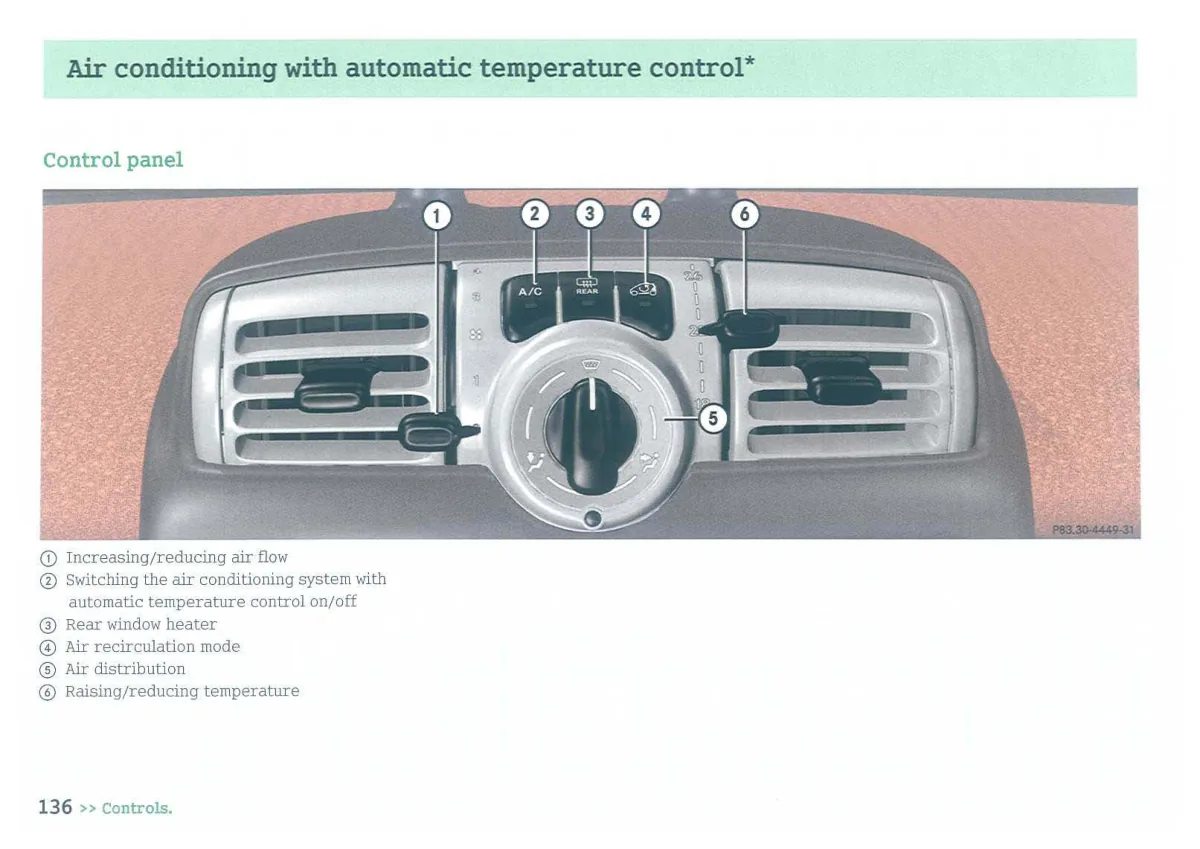

Air conditioning with automatic temperature control panel showing six numbered control functions and callouts.

Dashboard AC control panel with numbered callouts for air flow, system on/off, rear heater, recirculation, distribution, and temperature.
