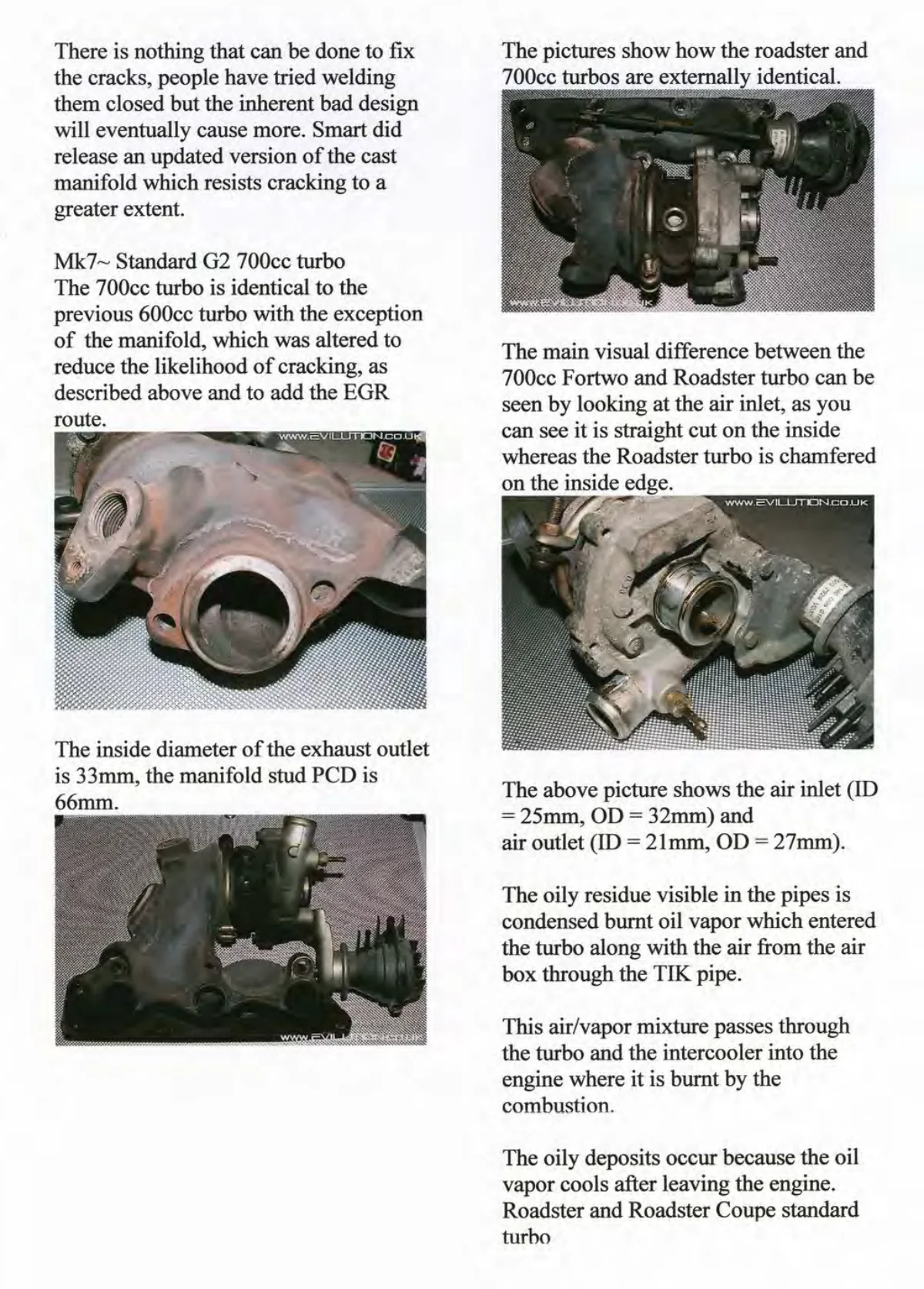

G2 700cc turbo manifold design and air inlet comparison between Fortwo and Roadster models with dimensional specifications.

Turbo manifold photos showing exhaust outlet diameter 33mm, PCD 66mm, and air inlet/outlet dimensions for Fortwo versus Roadster.
