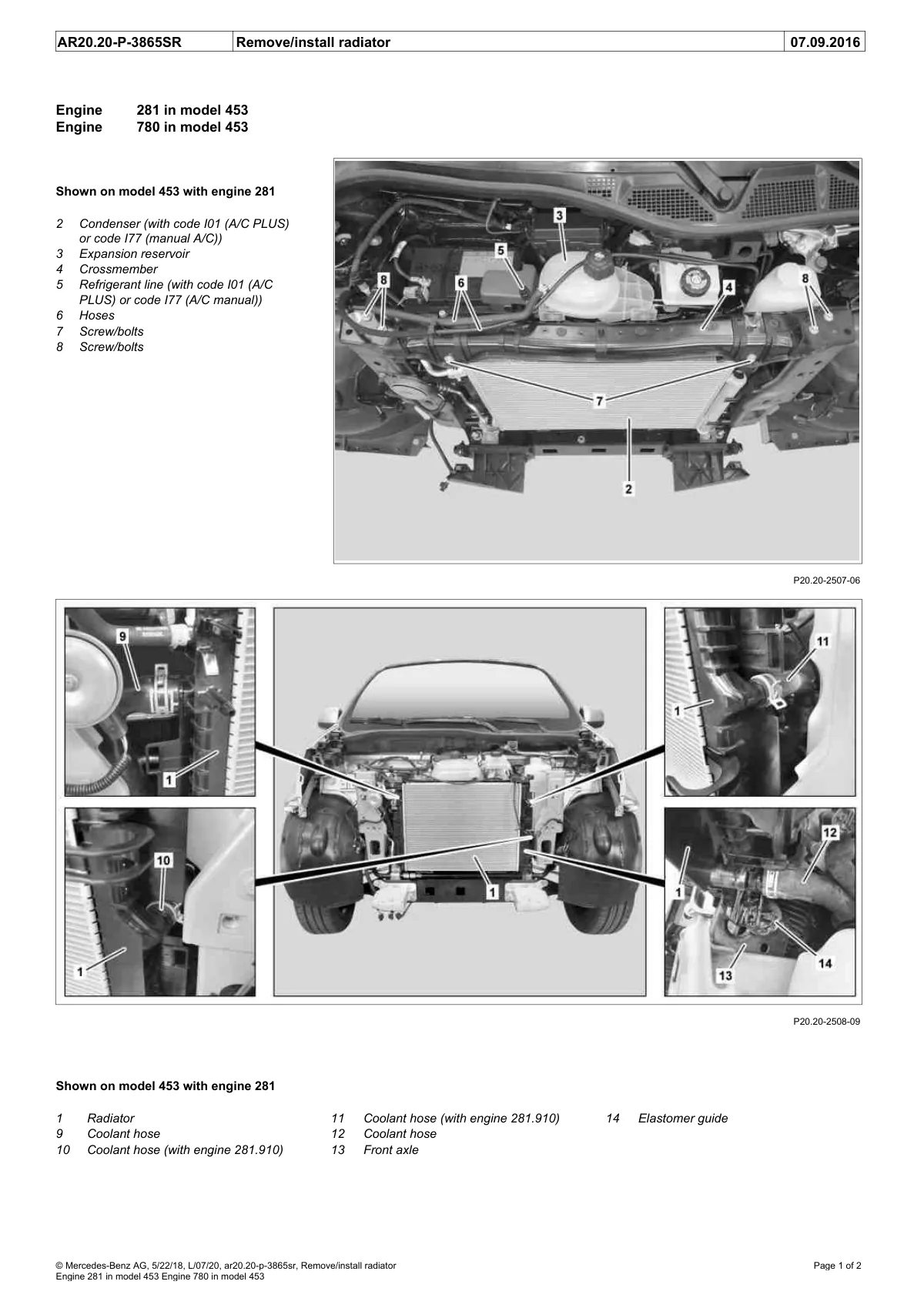

Smart Fortwo 453 radiator removal/installation procedure with engine 281, showing condenser, expansion reservoir, hoses, and mounting locations.

Engine bay diagram of Smart 453 with numbered callouts indicating radiator components and service points.
