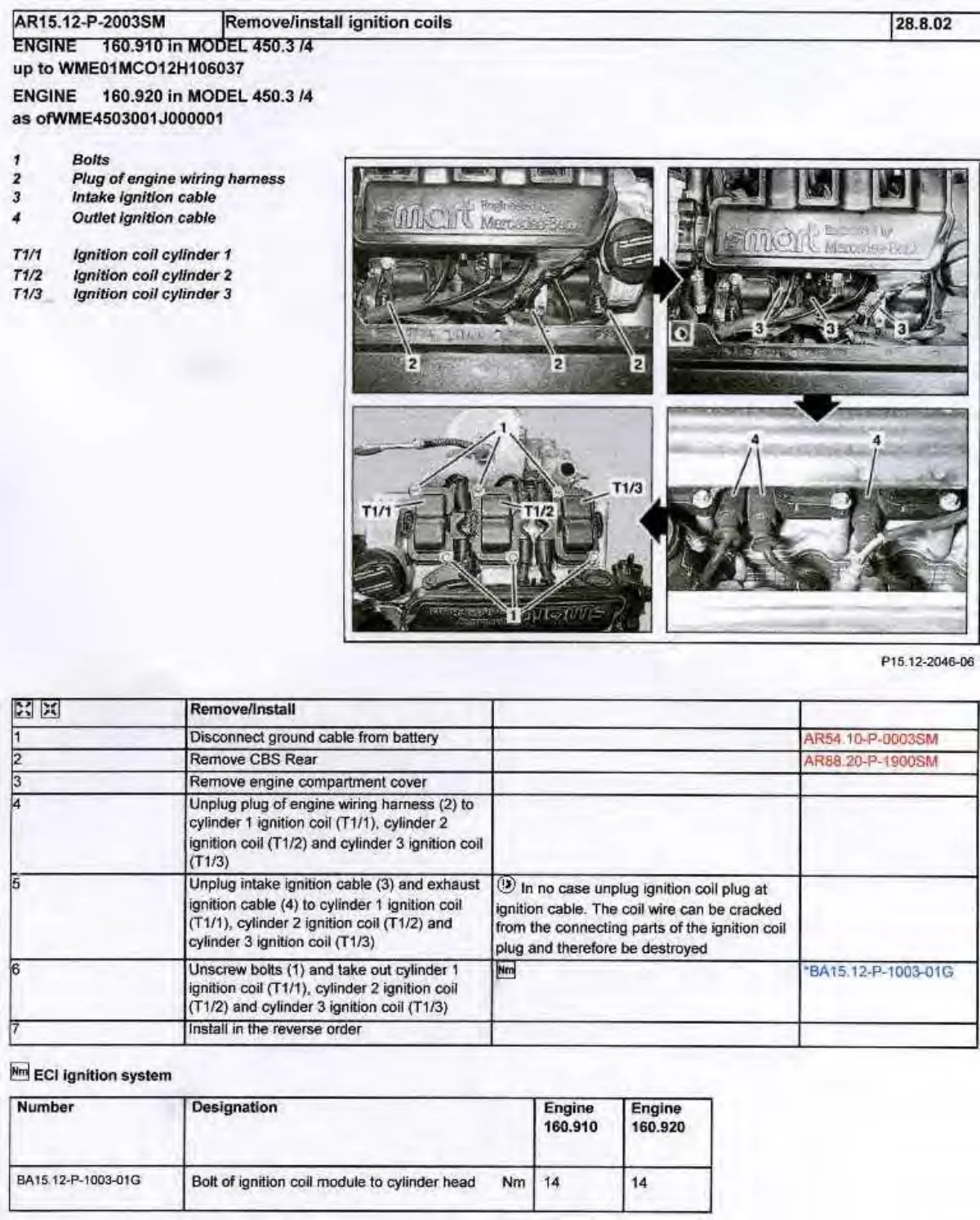

Remove and install ignition coils on smart fortwo 450 chassis with 160.910/160.920 engines; numbered callouts show coil locations and wiring harness disconnection points.

Four engine bay photographs showing ignition coil locations and removal procedure for three cylinders, with step-by-step service instructions below.
