Instrument cluster indicator lamps and interior illumination check procedure for Smart Fortwo 453 with numbered callouts and diagnostic steps.

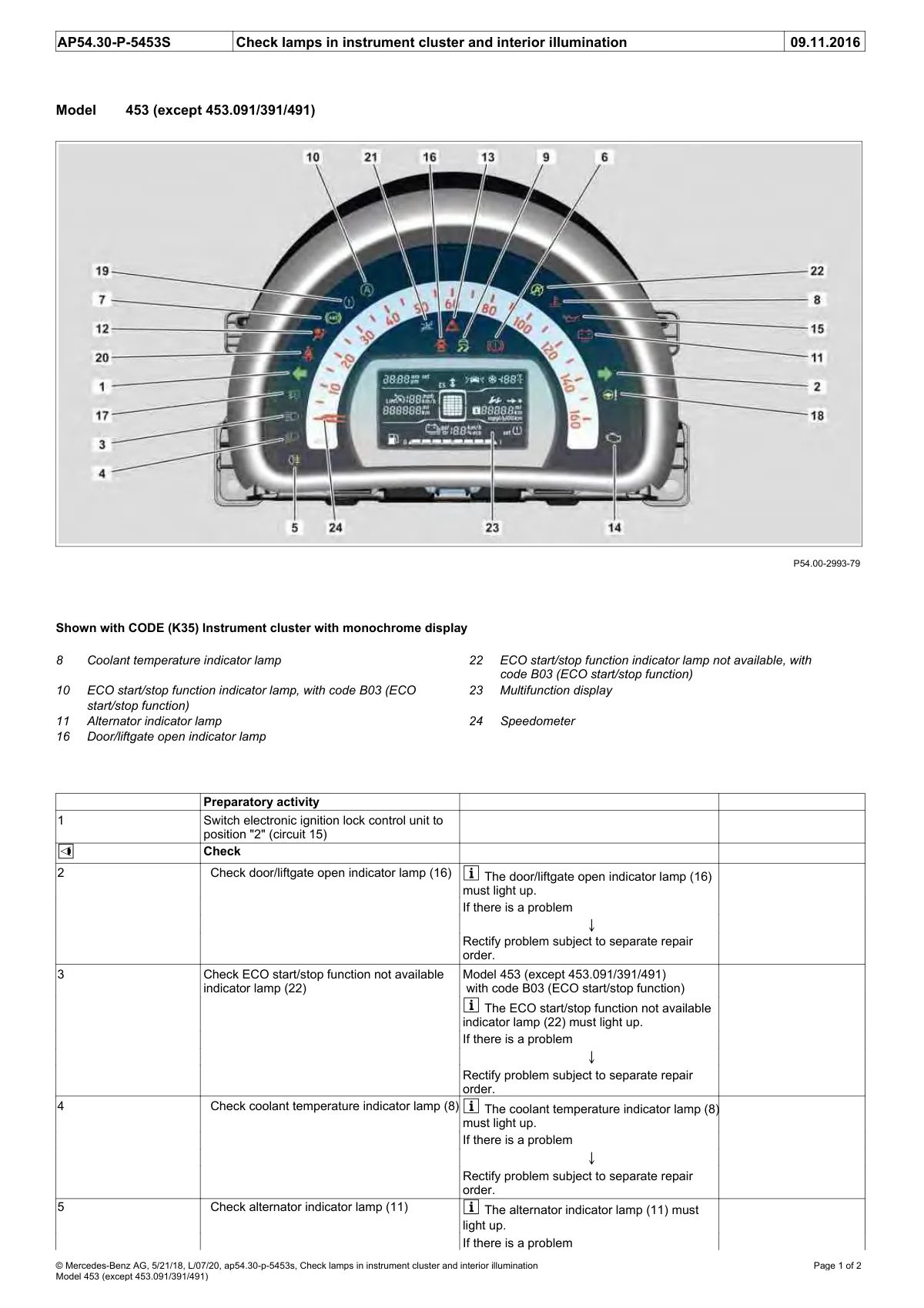

Smart 453 instrument cluster diagram with 24 numbered indicator lamp locations and service procedure table below.
