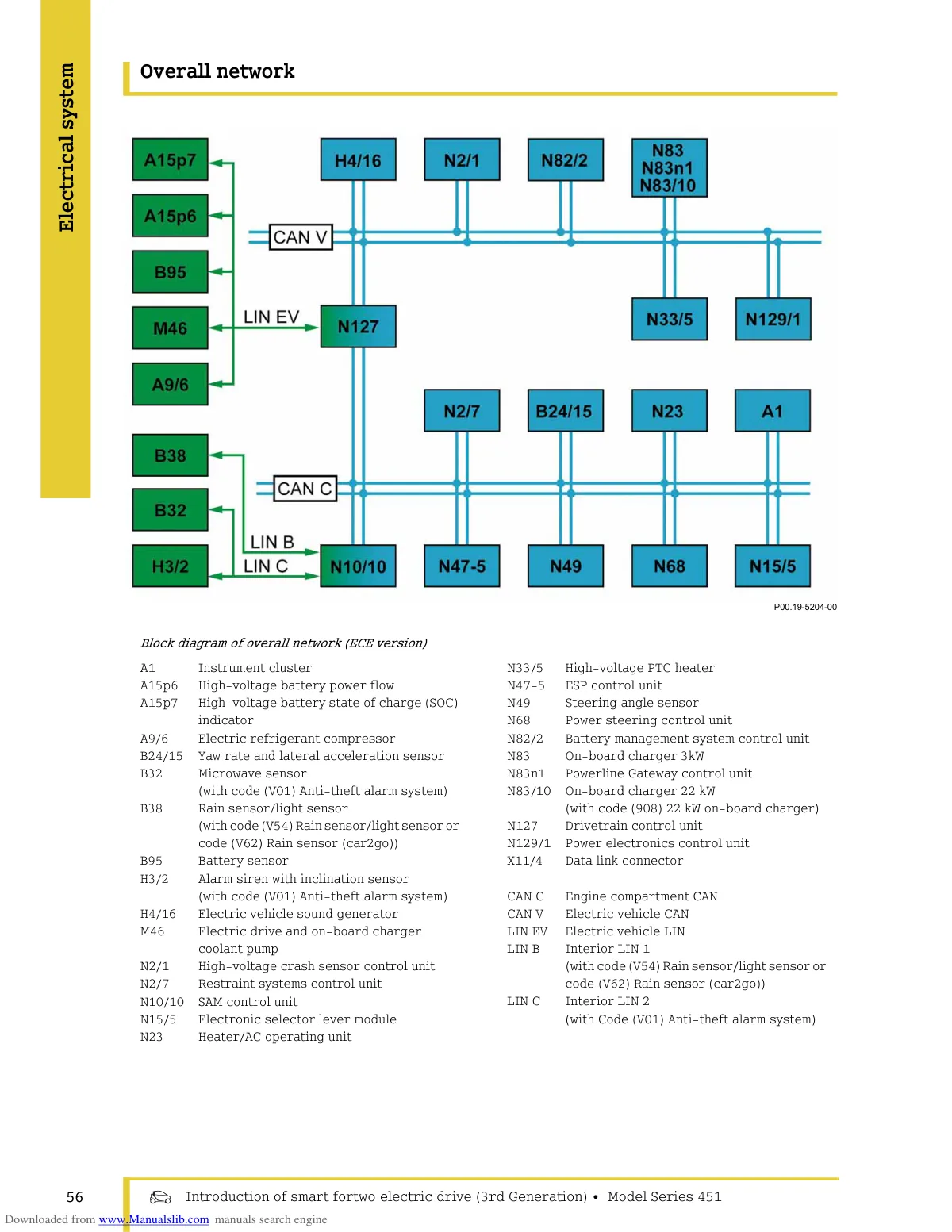

Block diagram of overall electrical network (ECE version) for Smart Fortwo 451 EV showing CAN V, CAN C, LIN EV, LIN B, and LIN C bus connections with control modules and sensors.

Electrical system network diagram with green control modules on left connected via multiple communication buses to blue control units and sensors on right.
