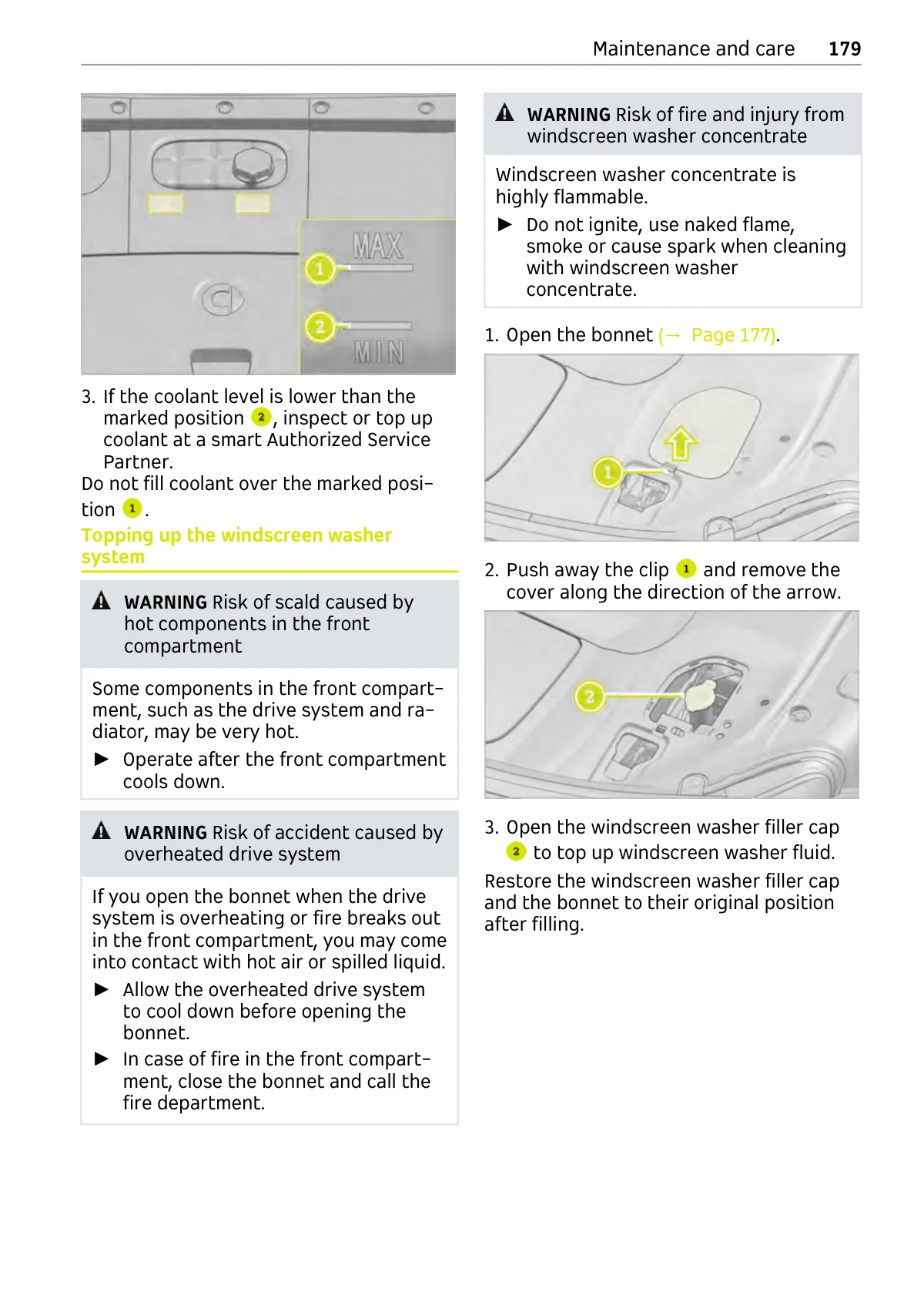

Windscreen washer fluid refill procedure with coolant level indicator and safety warnings for engine compartment maintenance.

Engine compartment diagram showing coolant reservoir with MAX/MIN marks and windscreen washer filler cap location with numbered steps.
